Structure-flex Parachute Air Lift Bags

With over 20 years' experience as a leading manufacturer of water filled crane test bags, we also produce parachute air lift bags in a range of capacities from 25kg/55lbs, for recreational diving enthusiasts, to 50,000kg/110,000lbs, for commercial salvage operations.

All bags from 250kg upwards are manufactured from European produced heavy duty 3x3 weave PVC coated polyester, with a total weight of 1680g/m2 / 50 oz/yd2, and come with stitched polyester webbing straps and single attachment load shackle.


Each bag comes with the following as standard:

  • Log book with type test certificate
  • Top mounted manual dump valve with lanyard, operated from the bottom of the bag
  • Clearly labelled inversion line attachment point



Bags from 3,000kg/6,600lbs benefit from a top mounted 3/4" inlet valve assembly and quick release camlock coupling and 25-100kg capacities are available in a wide choice of colours to match corporate branding or diving club colours.

All lift bags can be folded and tightly packed to make the best use of storage, are manufactured in a BS EN ISO 9001:2012 environment, and have been independently TUV/NEL type tested in excess of 6:1 to ensure compliance with recently updated IMCA D 016 Rev. 4 guidelines.

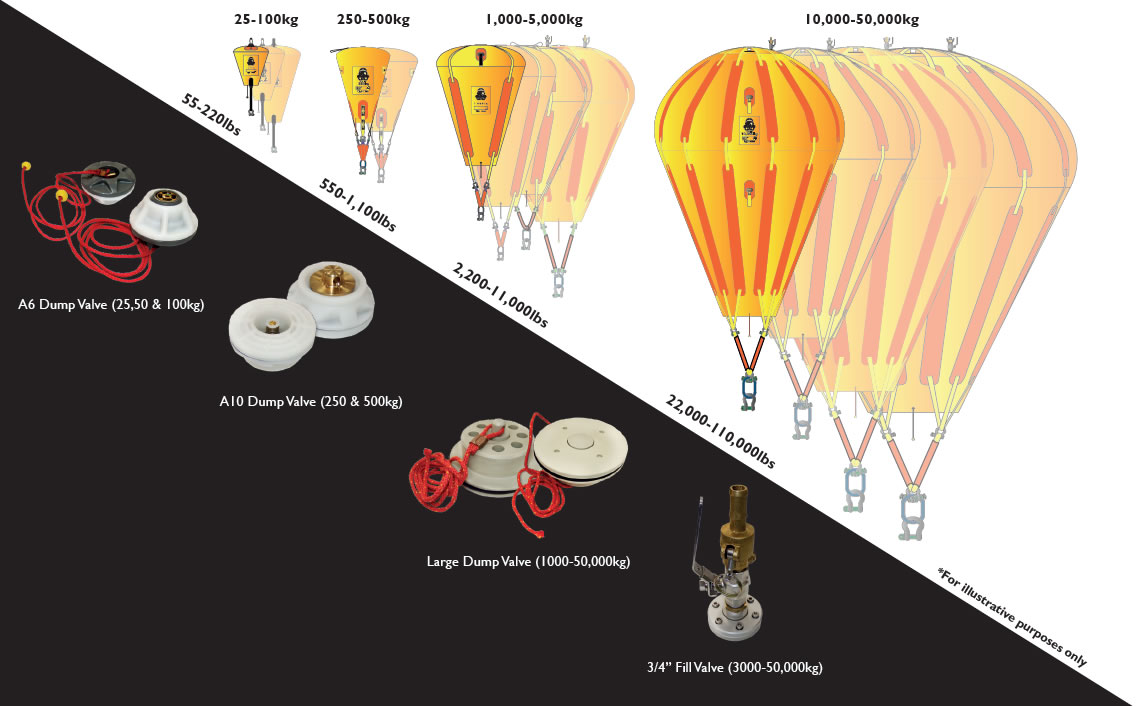

Technical Specifications & Parts


Model No. CAPACITY (KG/lbs) BAG HEIGHT (mm/inch) BAG DIAMETER (mm/inch) MATERIAL SPECIFICATION SMALL
DUMP VALVE
LARGE
DUMP VALVE
3/4"
FILL VALVE
PBO - 25 25/55 380/15 400/16 2 X 2 PVC 900gsm 26oz/yd²
PBO - 50 50/110 530/21 510/21 2 X 2 PVC 900gsm 26oz/yd²
PBO - 100 100/220 770/30 610/24 2 X 2 PVC 900gsm 26oz/yd²
PBO - 250 250/550 1,000/39 810/32 3 X 3 PVC 1680gsm 50oz/yd²
PBO - 500 500/1,100 1,250/49 1,100/43 3 X 3 PVC 1680gsm 50oz/yd²
PBO - 1000 1,000/2,250 1,490/59 1,325/52 3 X 3 PVC 1680gsm 50oz/yd²
PBO - 2000 2,000/4,400 1,950/77 1,650/65 3 X 3 PVC 1680gsm 50oz/yd²
PBO - 3000 3,000/6,600 2,190/86 1,900/75 3 X 3 PVC 1680gsm 50oz/yd²
PBO - 5000 5,000/11,000 2,590/102 2,250/89 3 X 3 PVC 1680gsm 50oz/yd²
PBO - 10000 10,000/22,000 3,960/156 2,550/100 3 X 3 PVC 1680gsm 50oz/yd²
PBO - 20000 20,000/44,000 4,400/173 3,500/138 3 X 3 PVC 1680gsm 50oz/yd²
PBO - 35000 35,000/77,000 5,300/209 4,200/165 3 X 3 PVC 1680gsm 50oz/yd²
PBO - 50000 50,000/110,000 5,600/220 5,000/197 3 X 3 PVC 1680gsm 50oz/yd²
