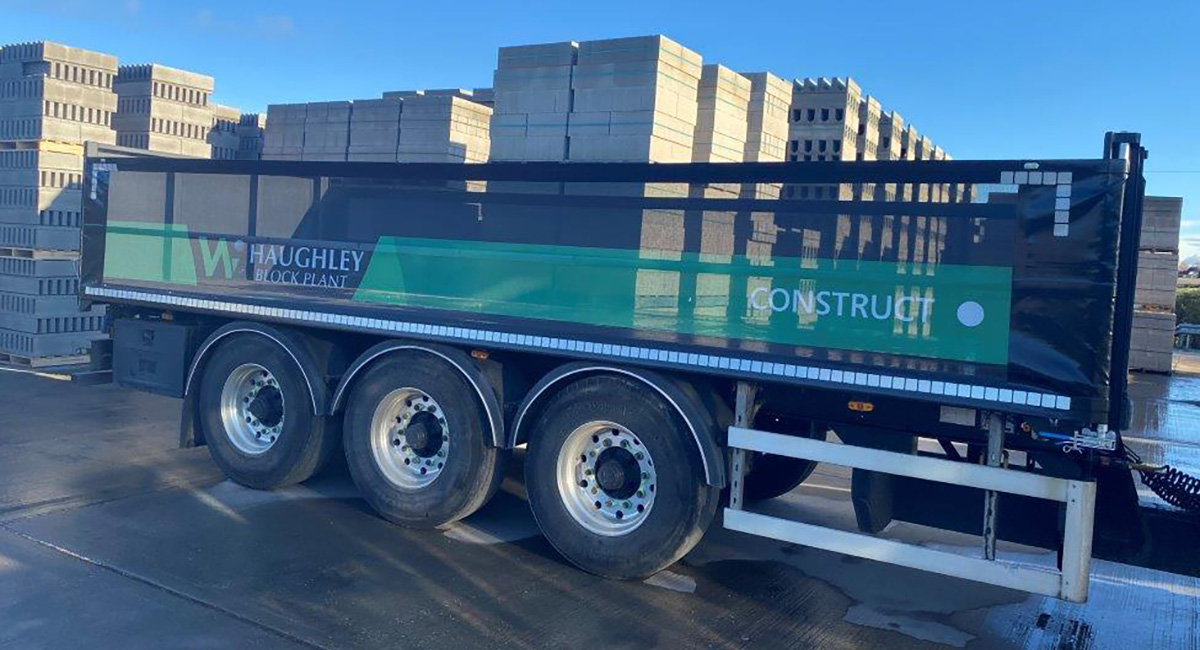

Full digital print lorry curtains maximise use and add value to commercial fleets out on the road, by advertising your own or alternatively a clients' brand / marketing message everywhere it goes. It has fast become one of the most cost effective advertising methods available.


Downloads


Structure-flex Ltd has been a leading manufacturer of high quality tension curtains since the product was first invented in the early 1970s and has continued to provide an increasing range of innovative technical products for the commercial vehicle industry ever since.

Our relocation in 2015 to a bespoke 50,000 sq ft factory, combined with ongoing investment in modern state of the art high frequency and hot air welding equipment, proudly provides us with the largest capacity digital print side curtain manufacturing facility, in the UK.

Our full-service integrated approach, means we are happy to measure vehicles or trailers, prepare visual livery layouts for approval, liaising where preferred directly with your marketing agencies regarding artwork design or preparation, as well as arranging fitting where required.




"Structure-flex offer a comprehensive service level, and when their high quality digital print is combined with the EN-XL side curtain design and quality of manufacture, they deliver a product which meets Tiger's own high expectations and requirements. Structure-flex have been a reliable supply partner since we started."

Darren Holland
Tiger Trailers, Sales Director

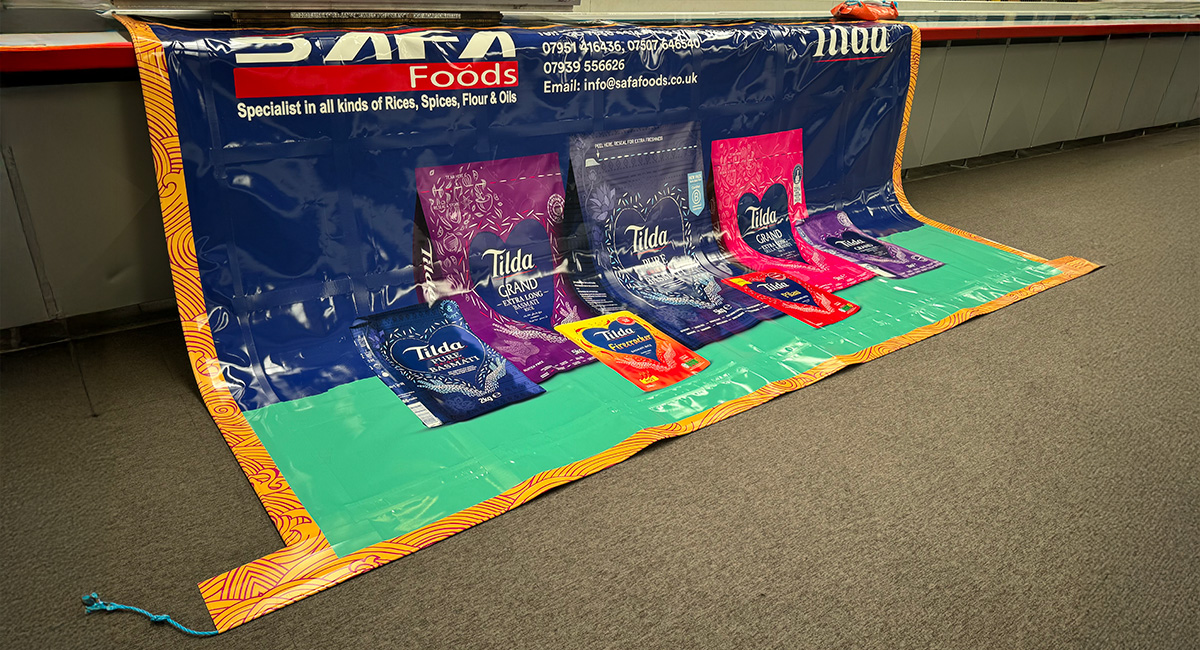

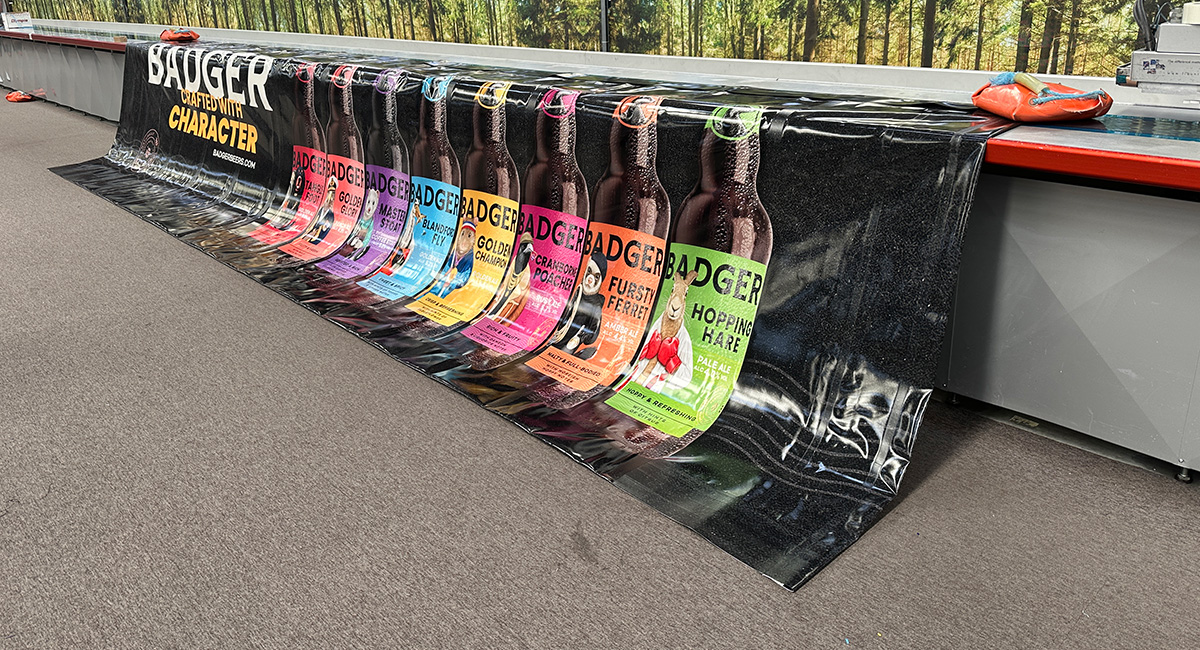

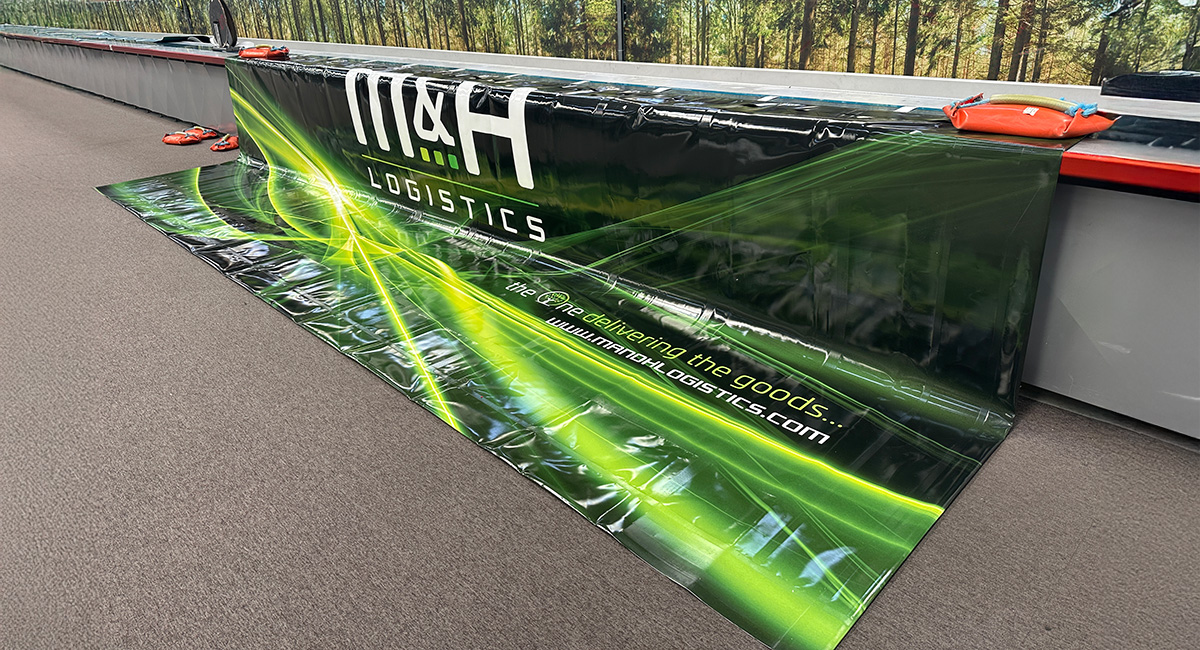

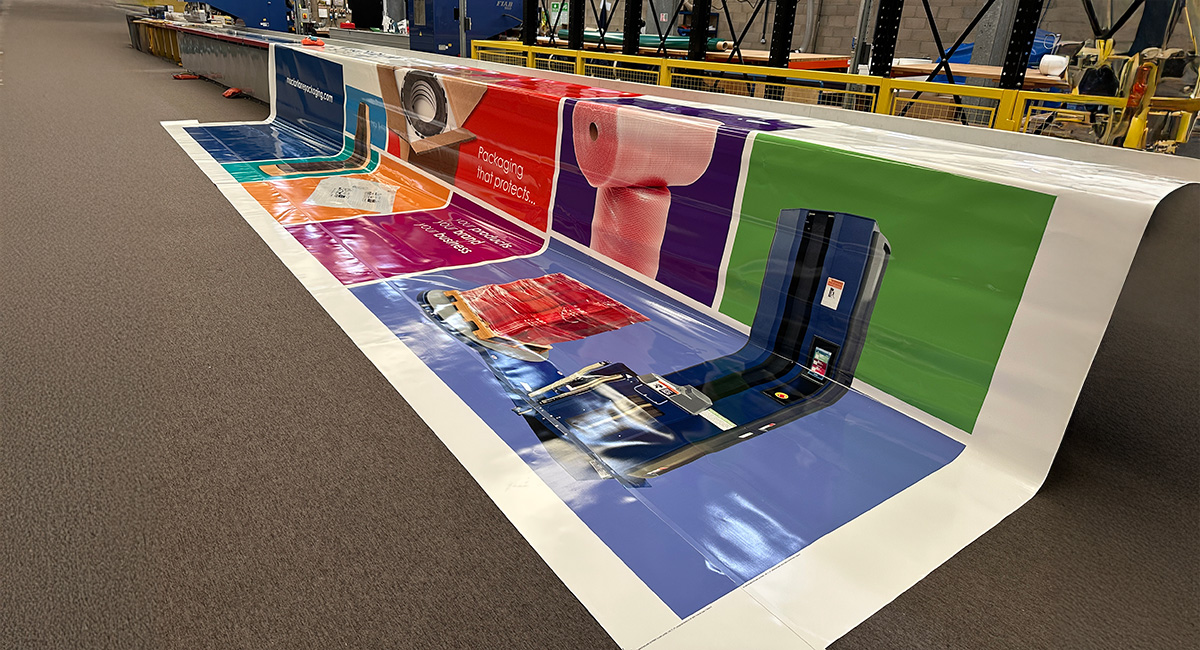

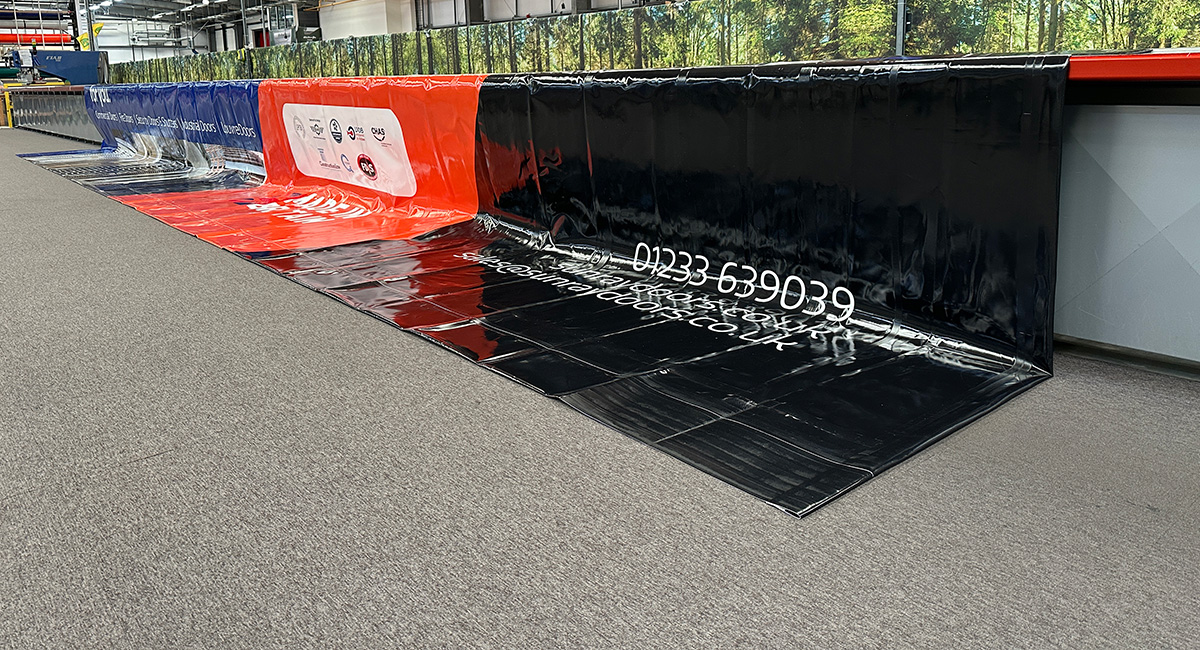

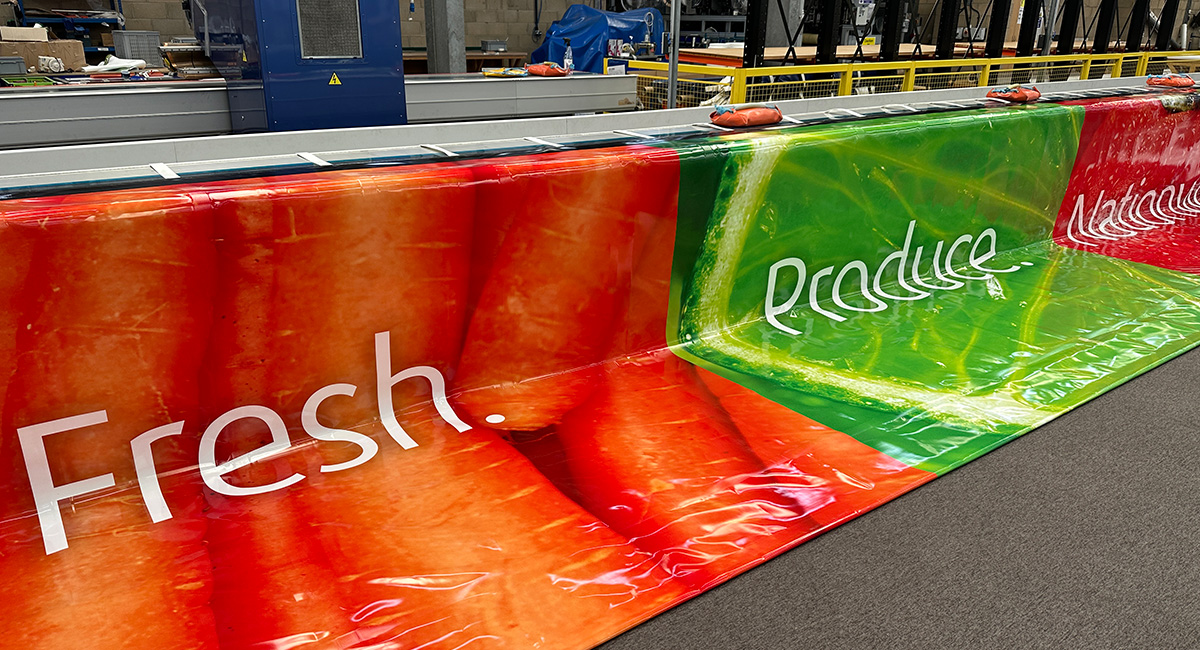

With a recent investment of £450,000 in the latest wide-format digital printing technology, we have increased our capacity to produce stunning curtain sides with full scale digital print graphics covering the length and height of the curtain at a very cost effective price.

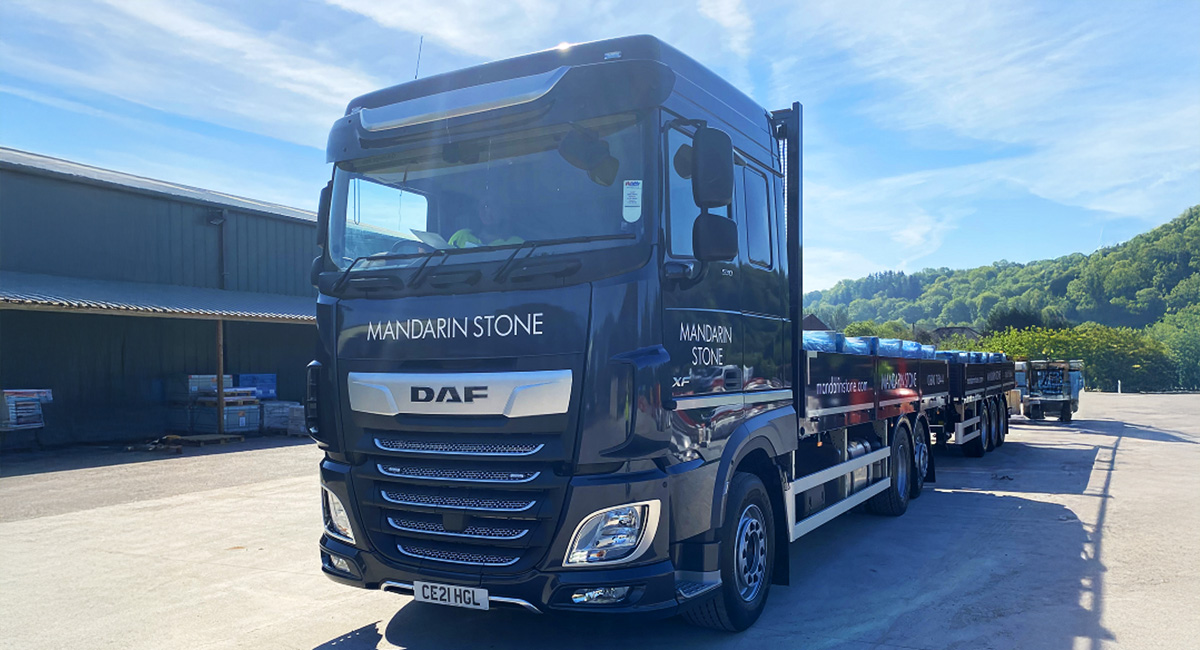

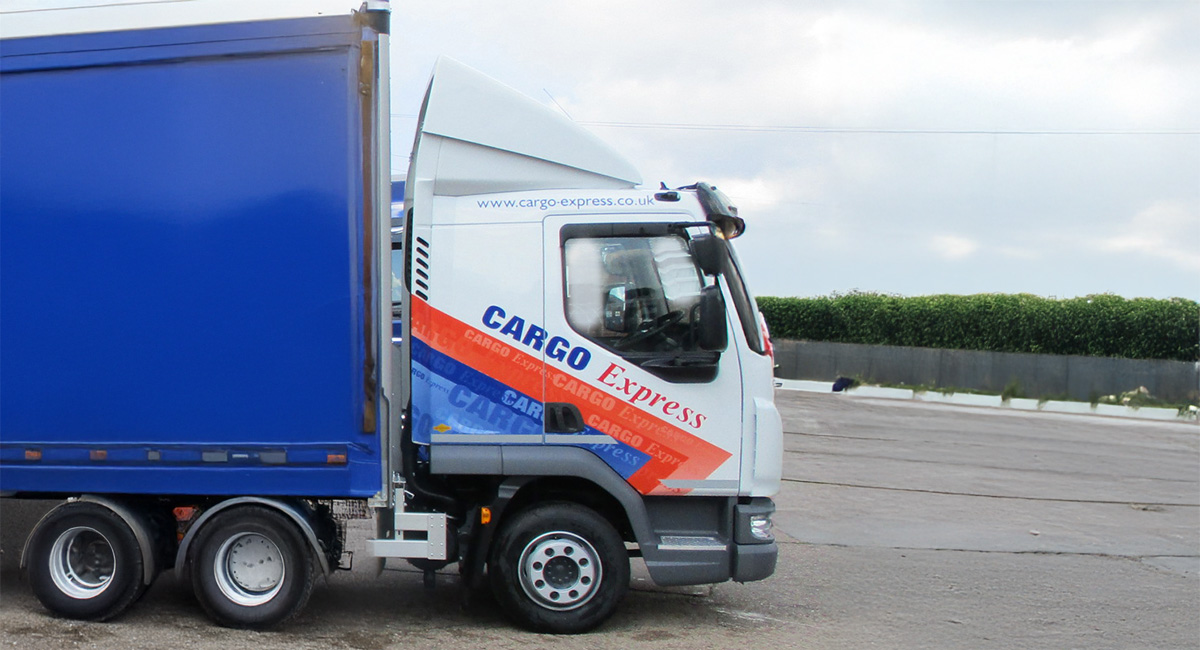

To compliment side curtain liveries ,we also offer in-house digitally printed cab and rear door decals or wraps. These are perfect for tying livery designs together, offering even stronger and more striking branding possibilities.


CURTAIN OPTIONS

We make curtains to fit all sizes of trailers and vehicles, for all purposes. If you would like to know more than what is listed below please don't hesitate to call us on 01263 863100

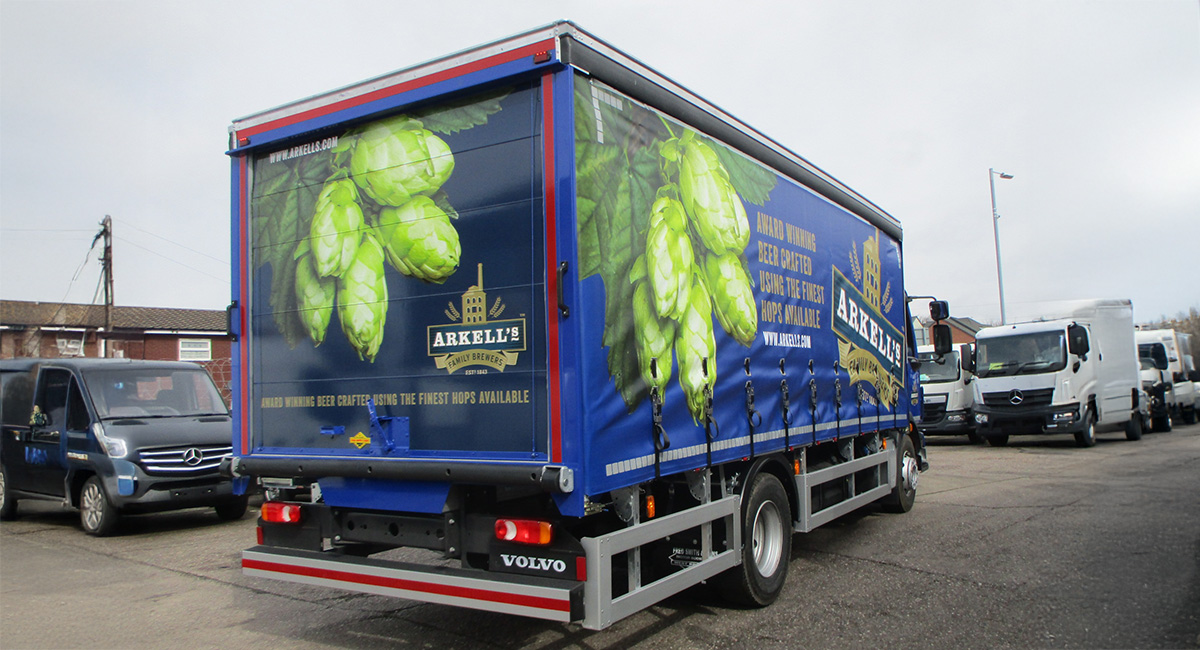

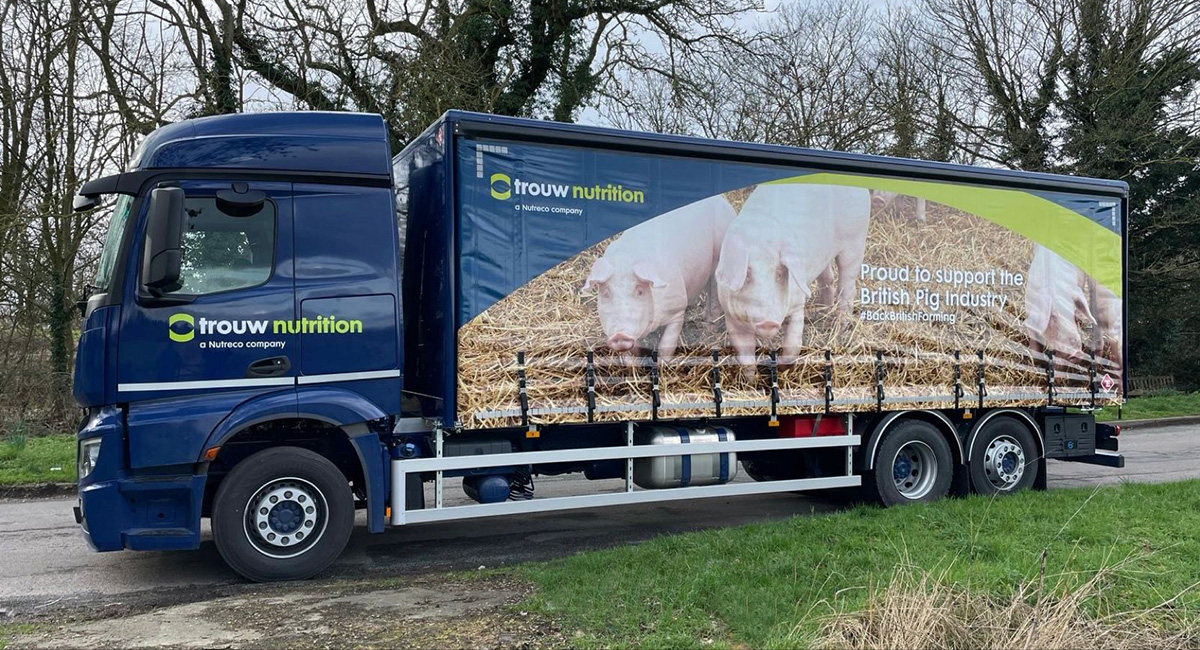

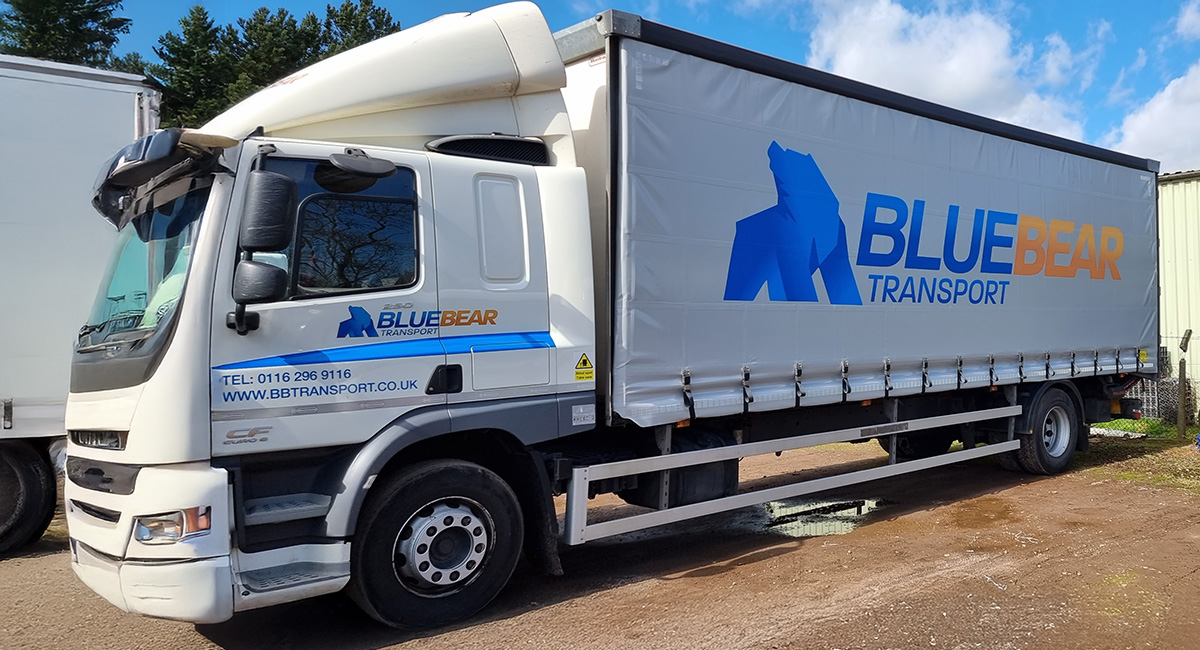

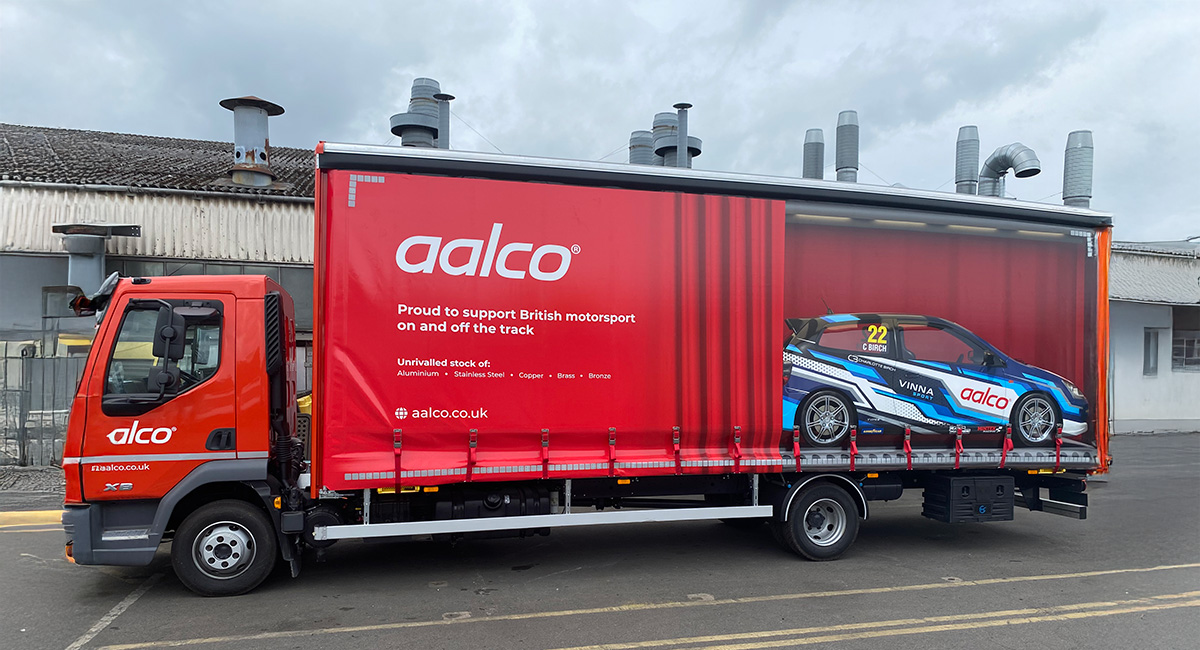

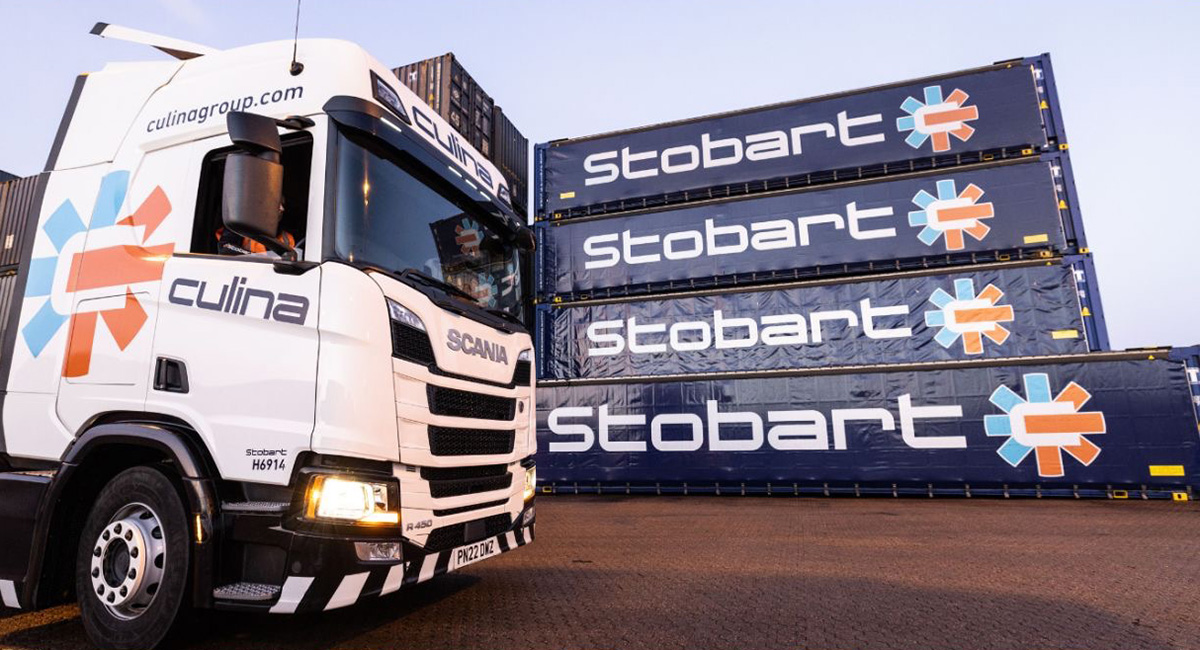

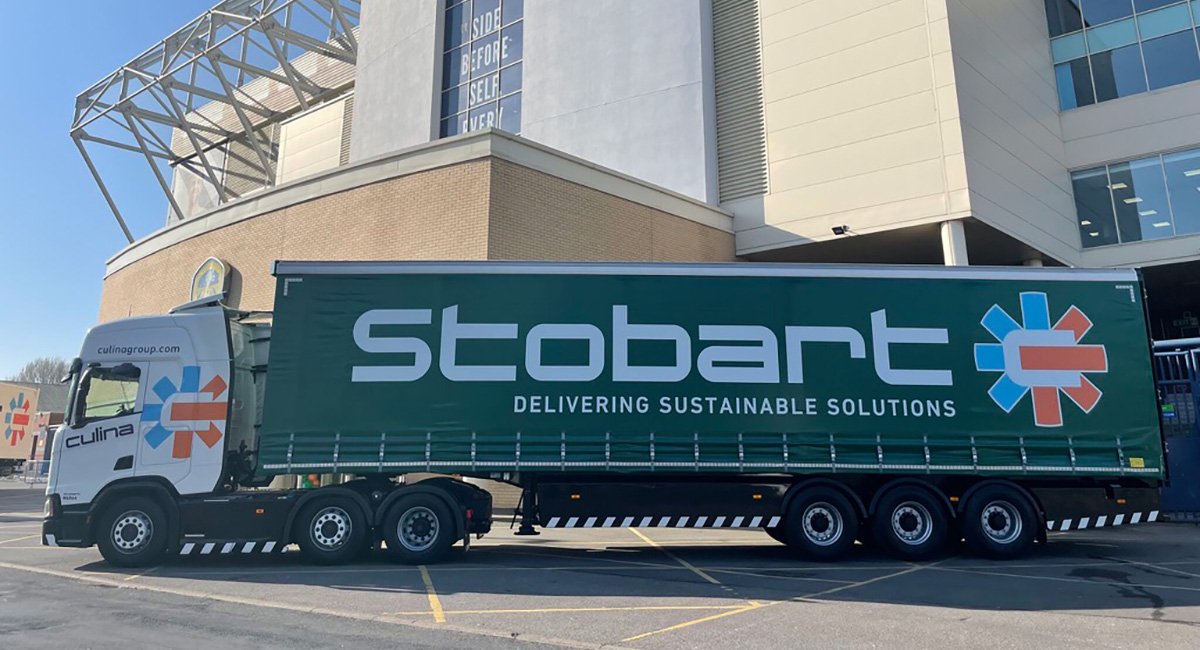

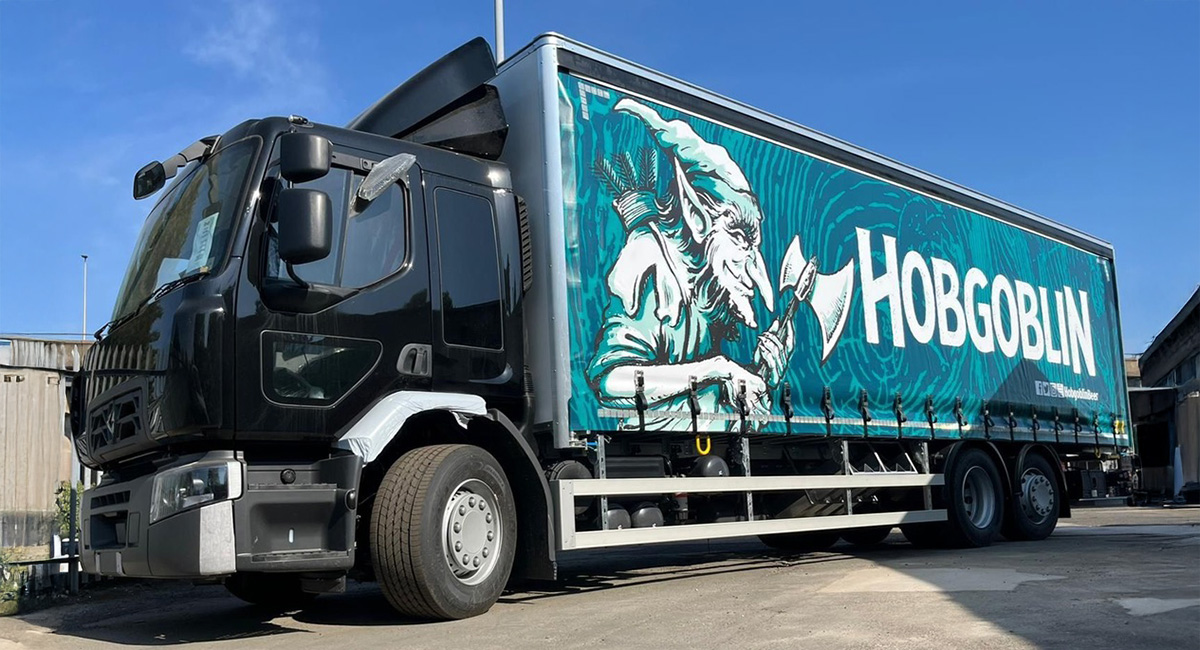

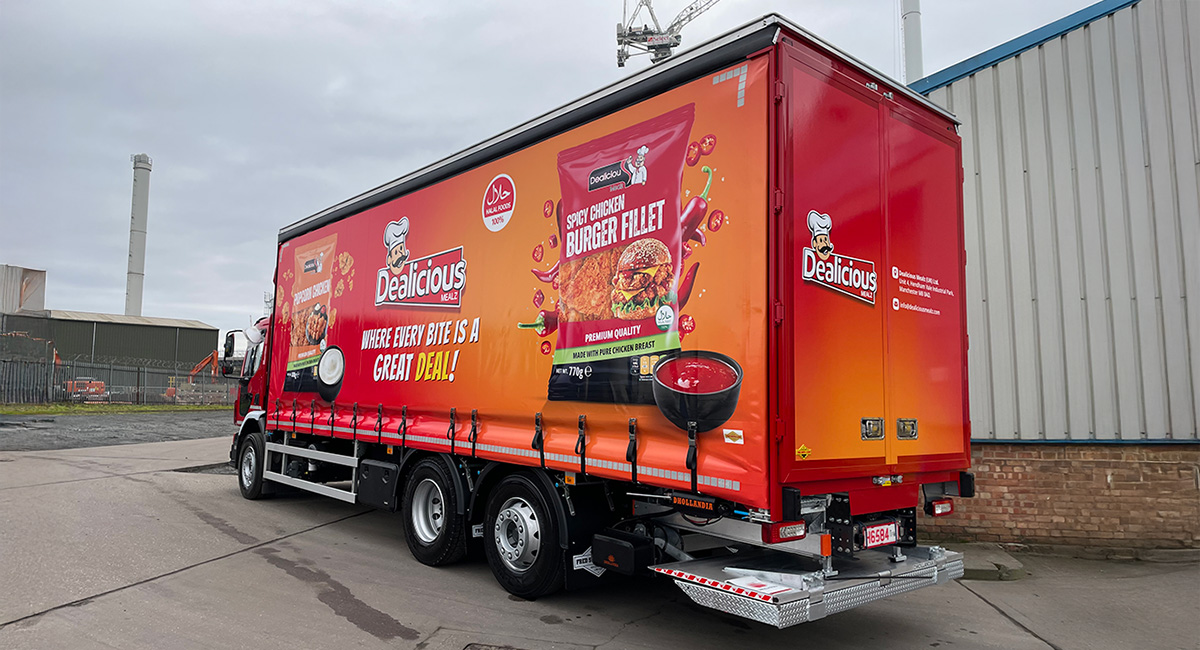

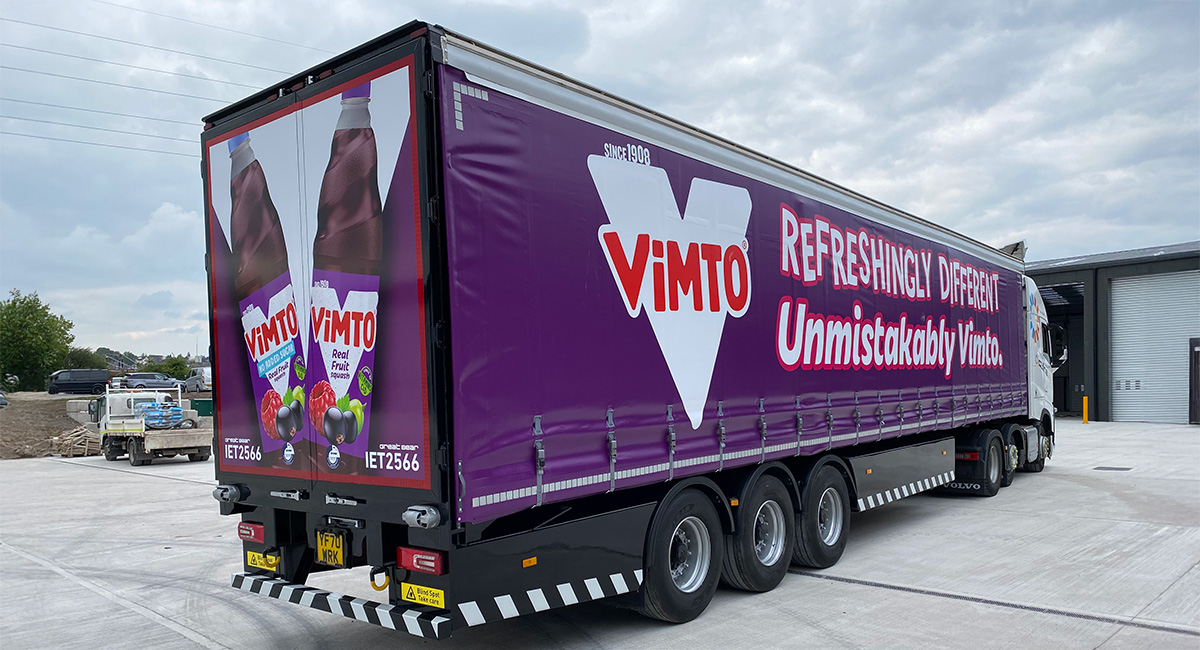

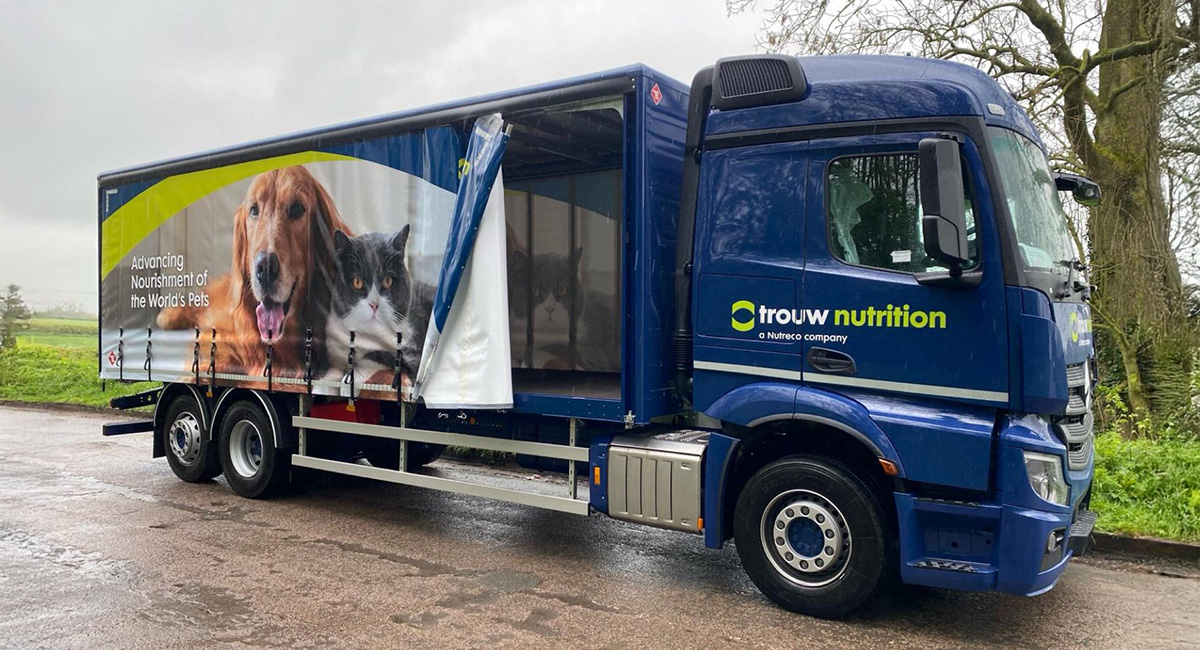

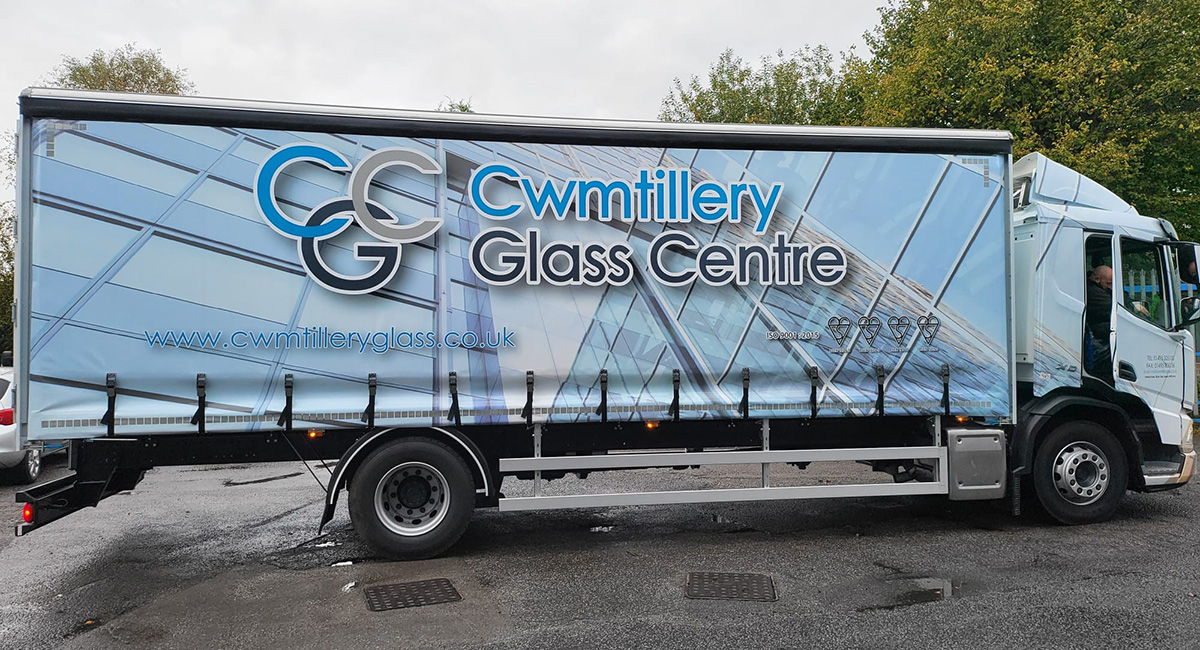

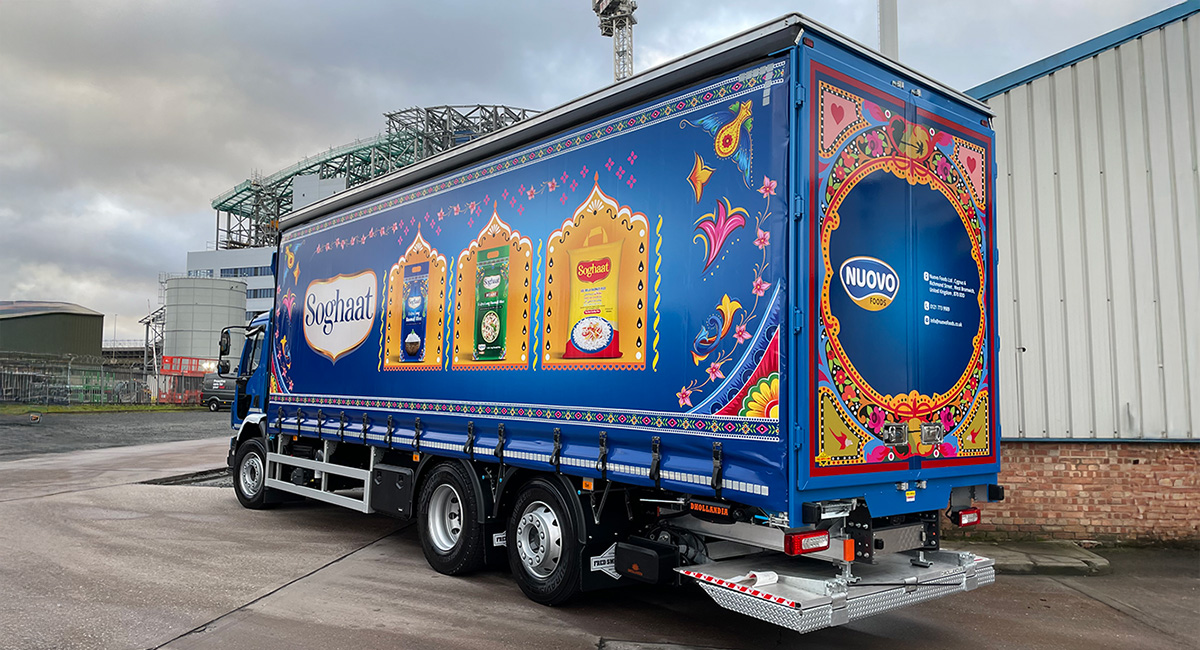

Manufactured from 900gsm 2x2 Panama PVC coated polyester high gloss lacquered material, available in both pocket and fixed strap style. Lots of additional features can be added to tailor the curtain to your specific requirements from increasing safety to insulation for chilled and ambient produce.

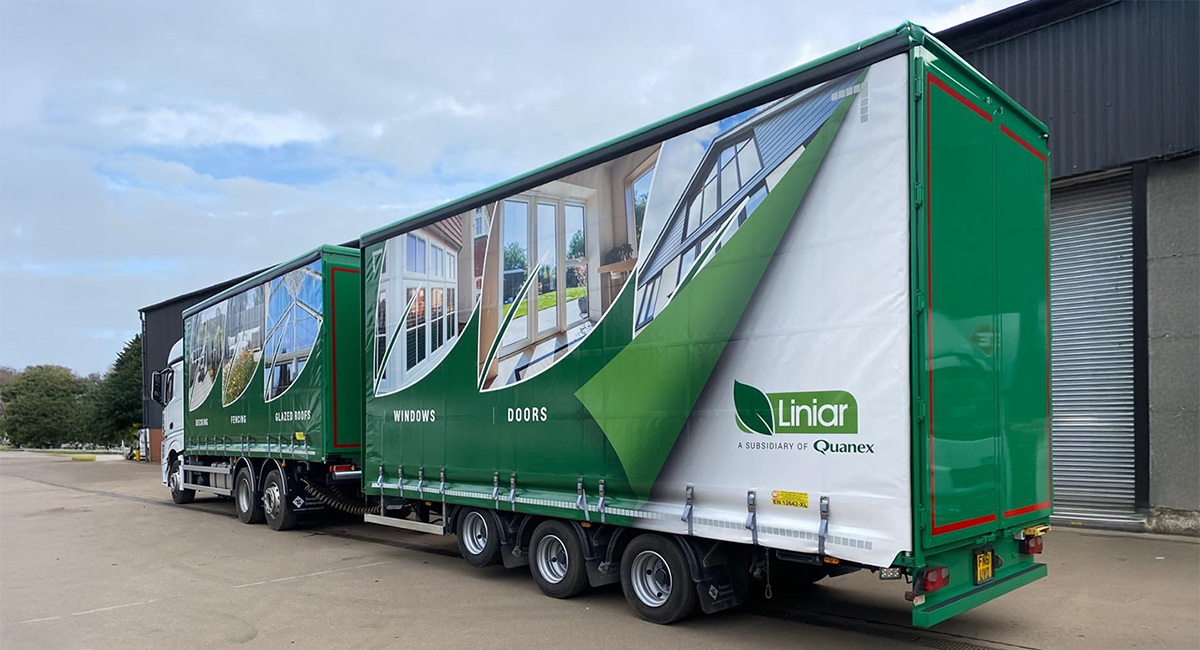

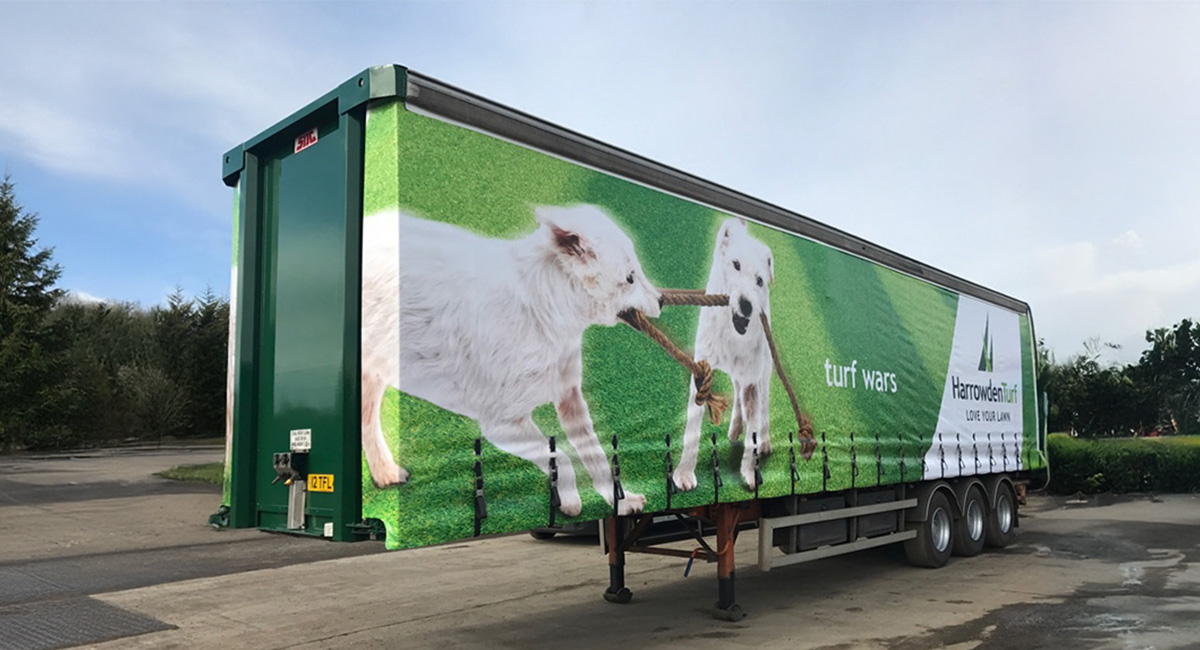

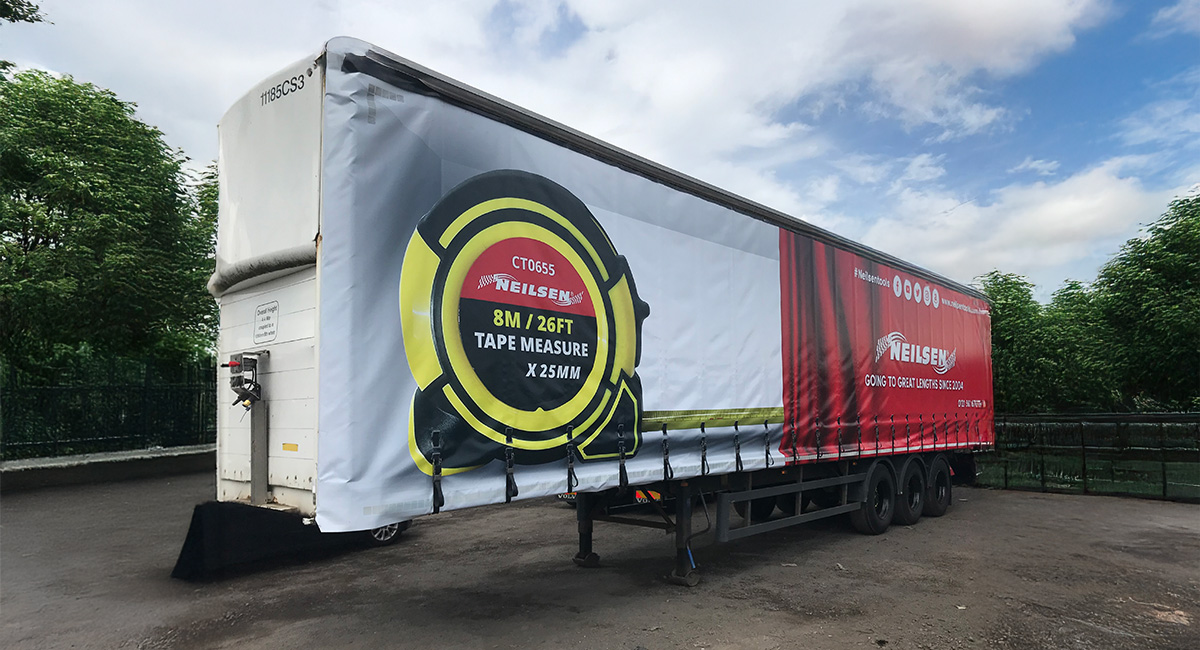

  • Available in both pocket and fixed strap style
  • Choice of fabric colour from our extensive stock range

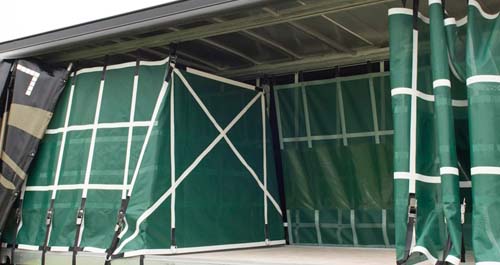

  • Full EN-XL load bearing options
  • Security and insulated options available
  • Over 30 years of experience in manufacturing lorry curtains
  • Additional livery options for rear door, cab decals and wraps
  • Curtain measuring service
  • Largest fully equipped, curtain printing and manufacturing facility in the UK
  • Signwriting and full digital print available
  • Download the PDF brochure for further details

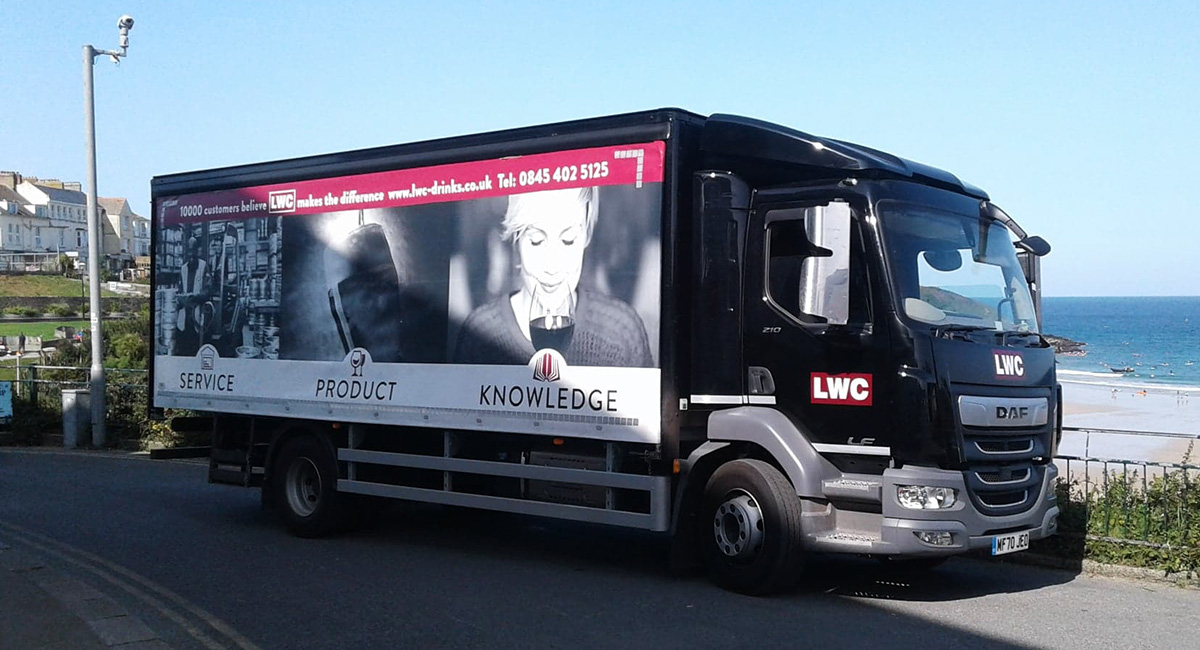

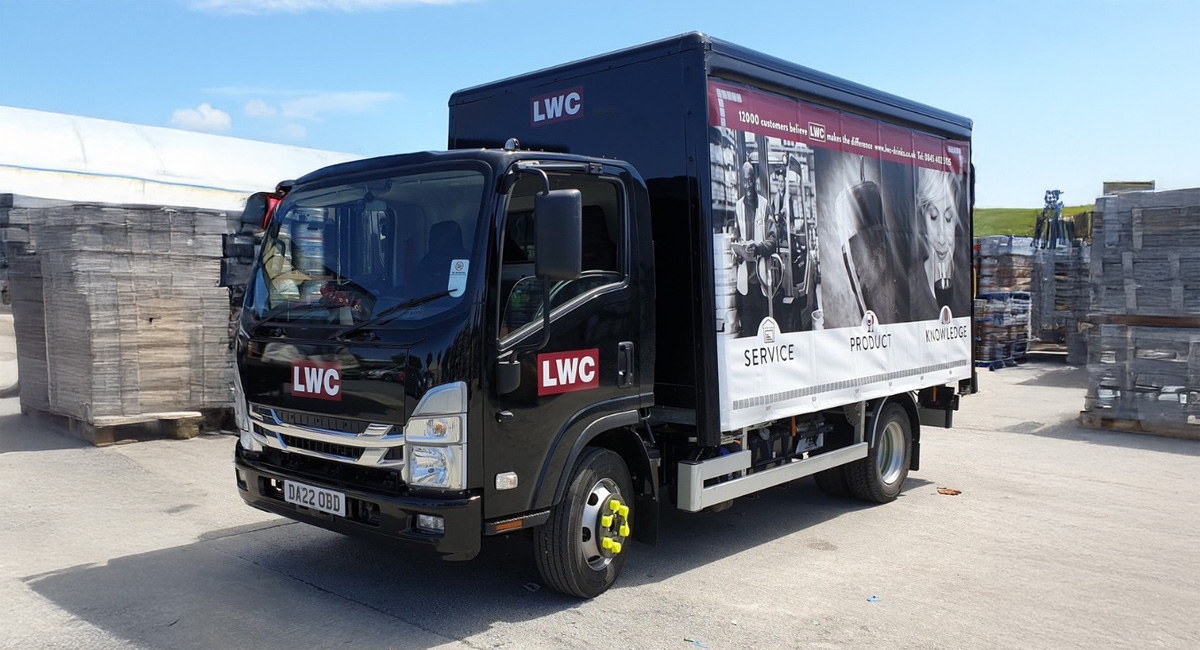

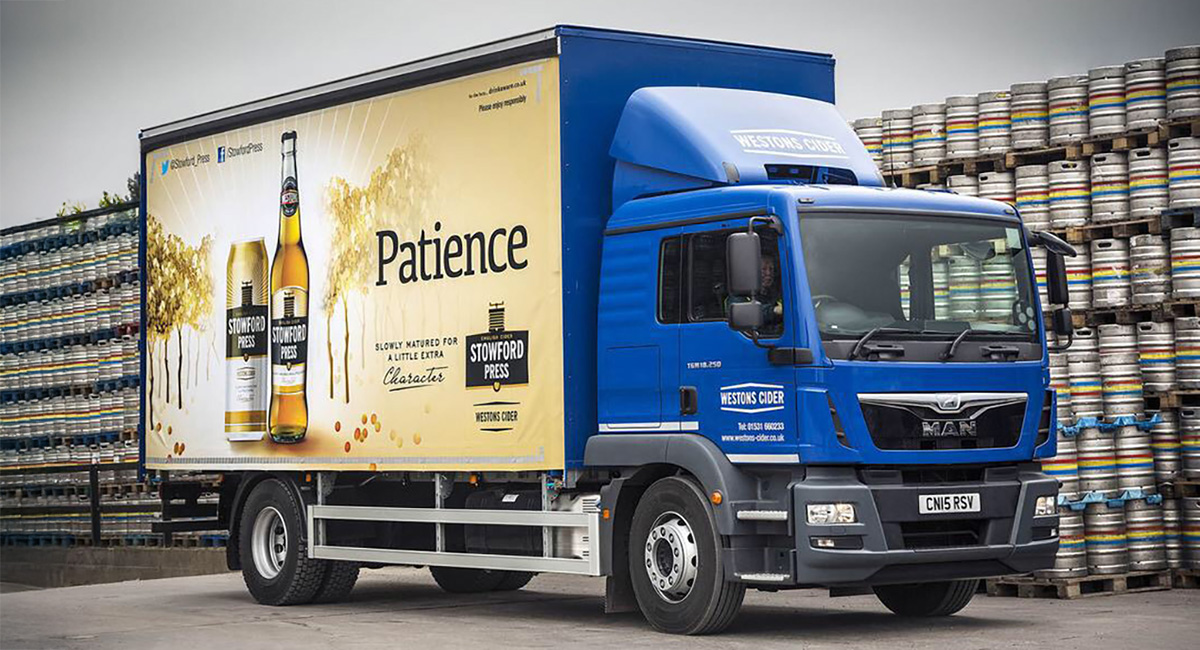

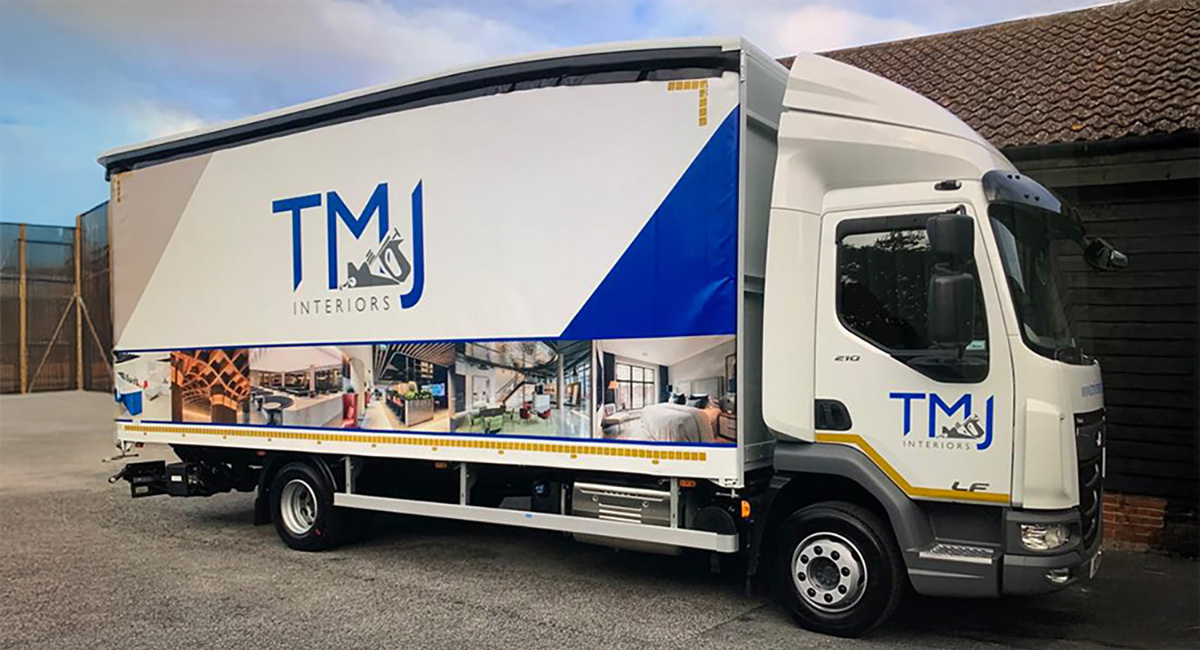

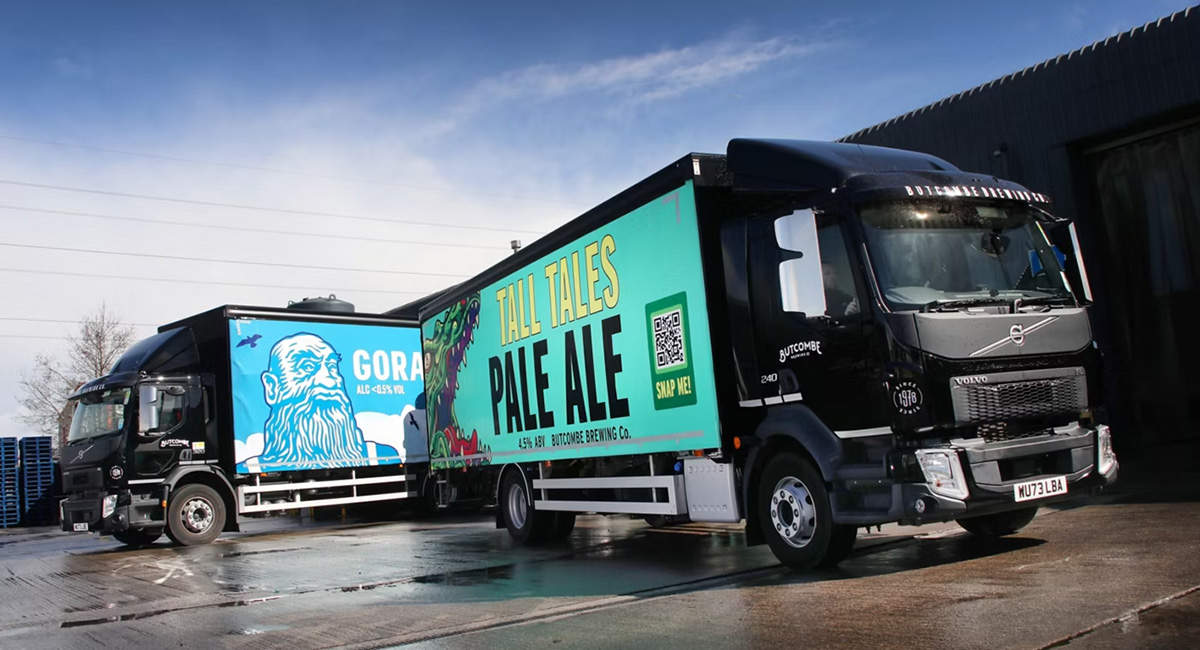

The unique Smoothside curtain system transforms the appearance of a curtainsider and gives you the whole of the side to display your company details and brands. Smoothside works differently to tension curtains, so there are no straps or buckles visible from the outside presenting you with a more visually appealing option of using the whole of the visible area to be as creative as you choose.

  • Over 30 years of experience in manufacturing lorry curtains
  • Choice of fabric colour from our extensive stock range
  • Security and insulated options available
  • Additional livery options for rear door, cab decals and wraps
  • Curtain measuring service
  • Largest fully equipped, curtain printing and manufacturing facility in the UK
  • Signwriting and full digital print available

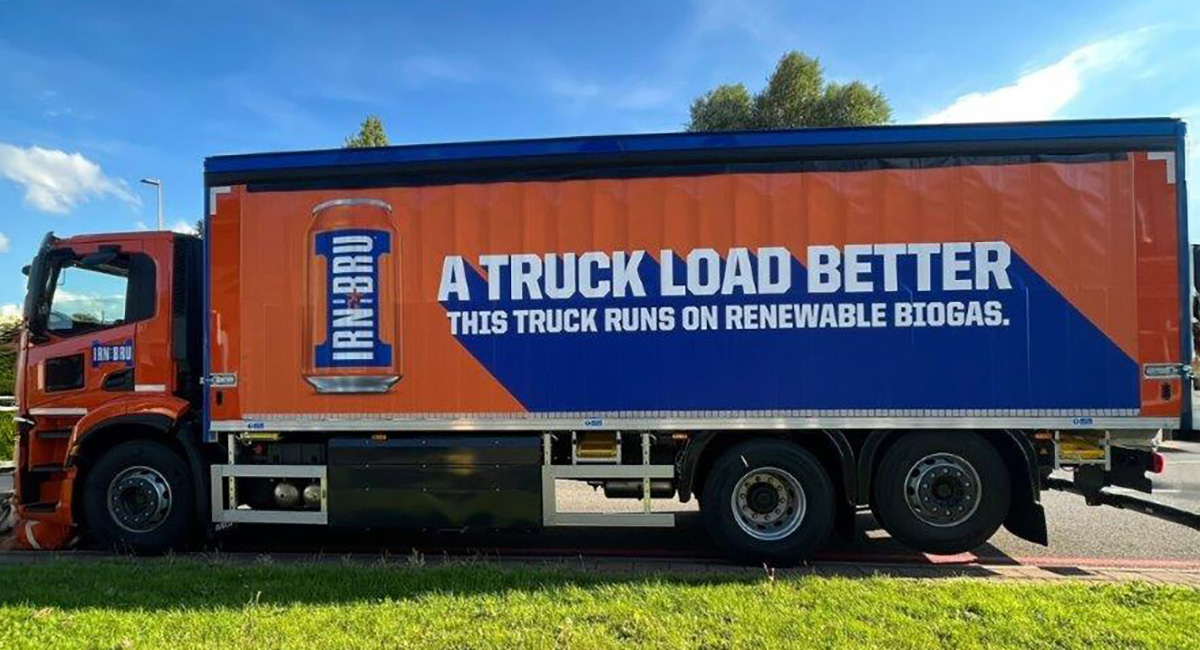

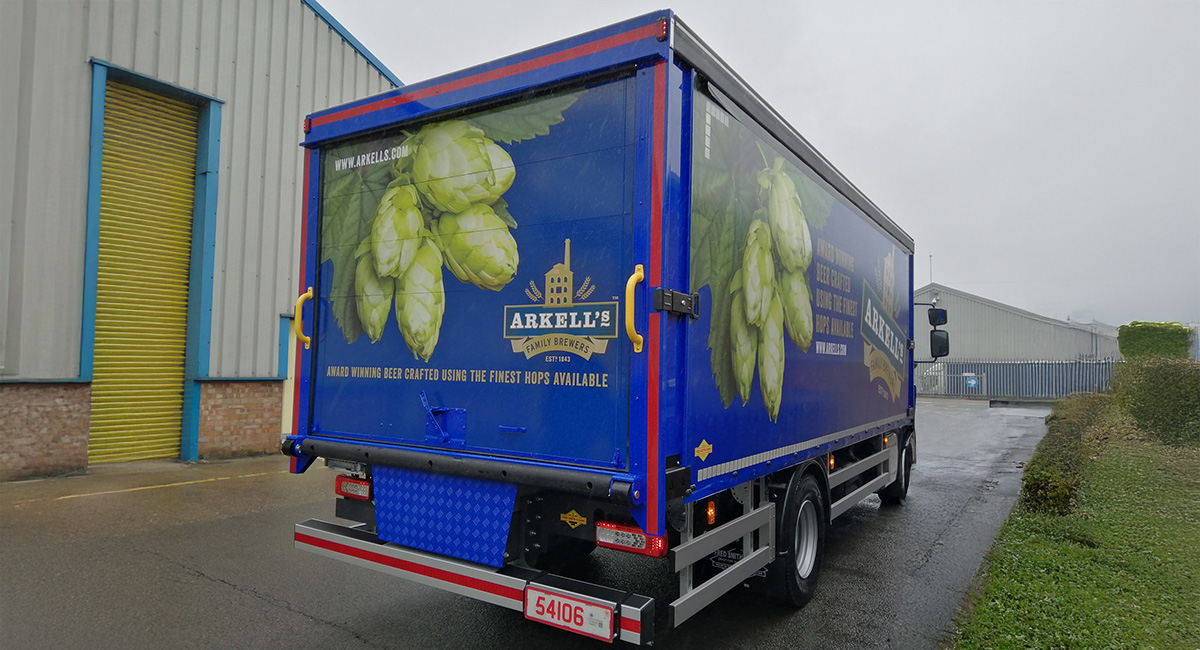

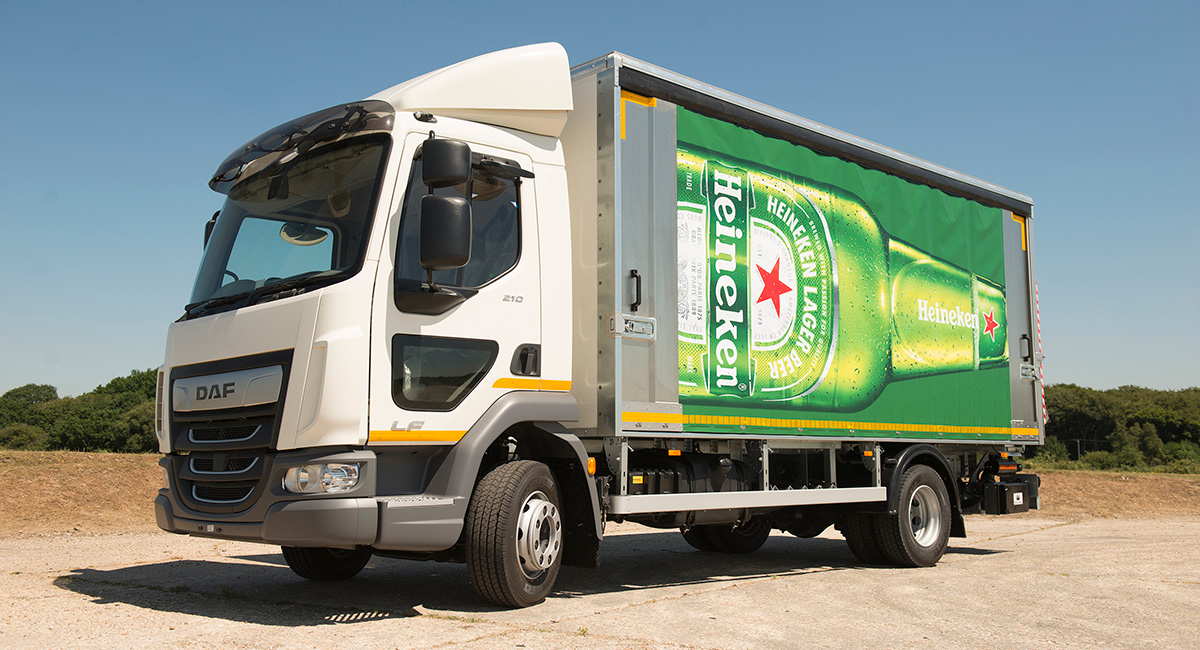

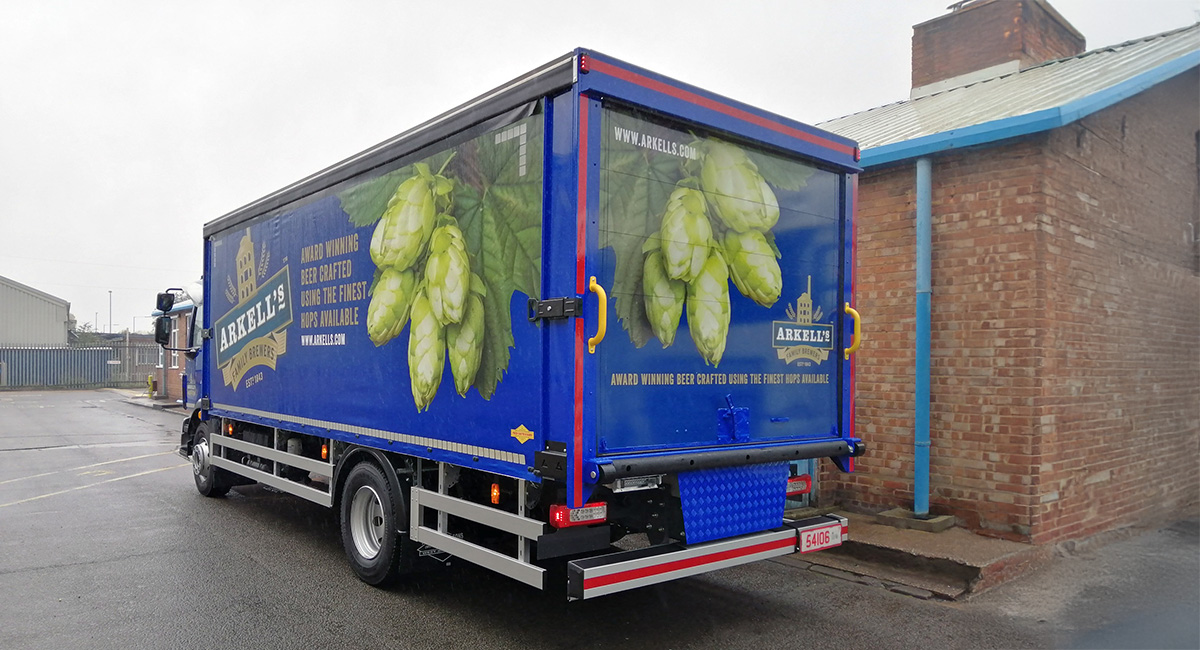

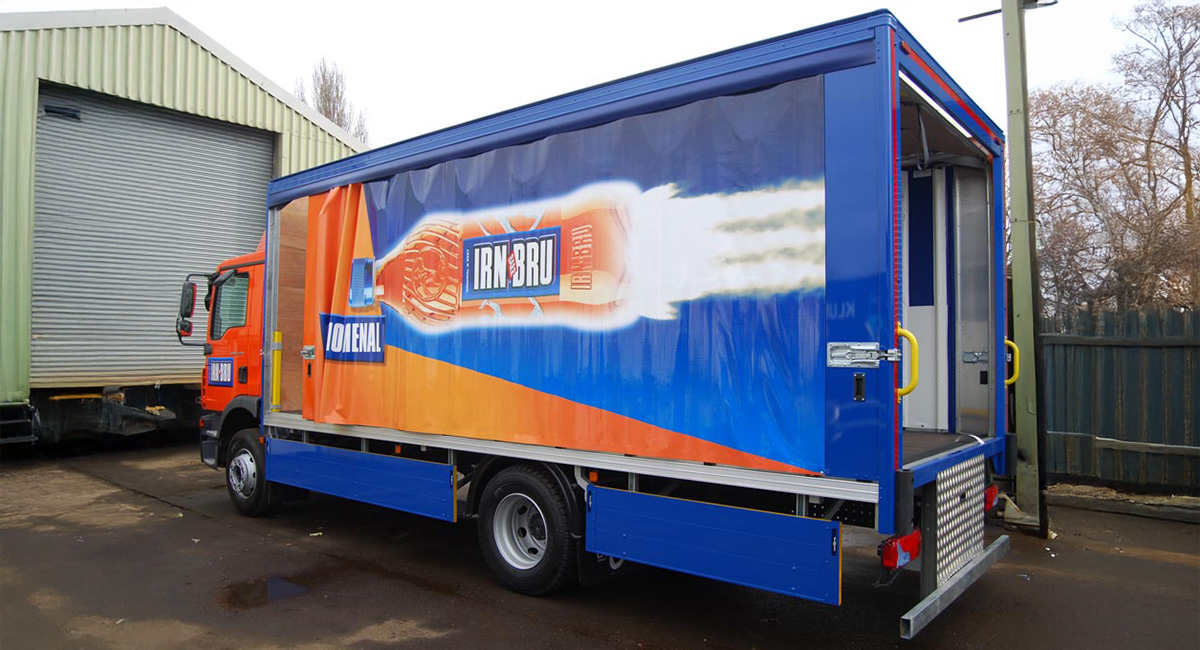

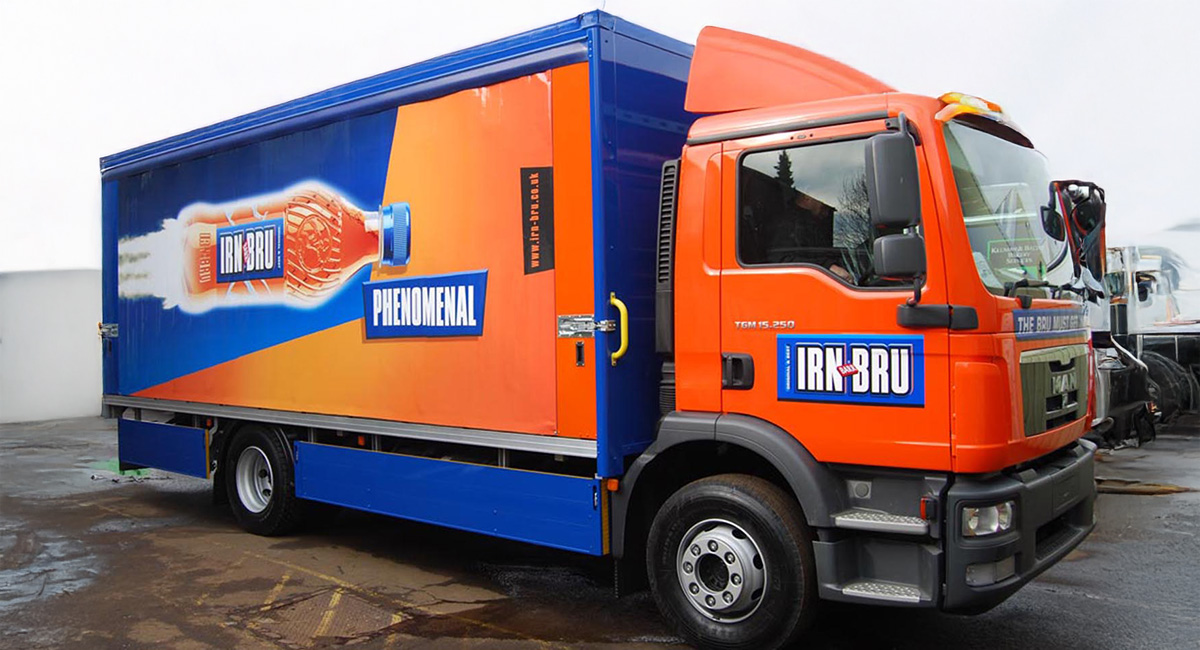

Reflex is a rapid access body system developed specifically for multi drop operations that require frequent opening and closing of the sides. It's bespoke side rave and curtain construction provide a smooth operation and durability and the option to individually lock each of the doors provides added security for your product. We can provide the complete body kit together with the curtain in a colour and livery of your choice.


  • Over 30 years of experience in manufacturing lorry curtains
  • Additional livery options for rear door, cab decals and wraps
  • Curtain measuring service
  • Largest fully equipped, curtain printing and manufacturing facility in the UK
  • Signwriting and full digital print available

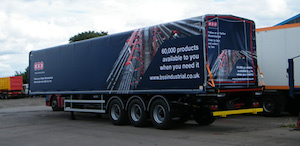

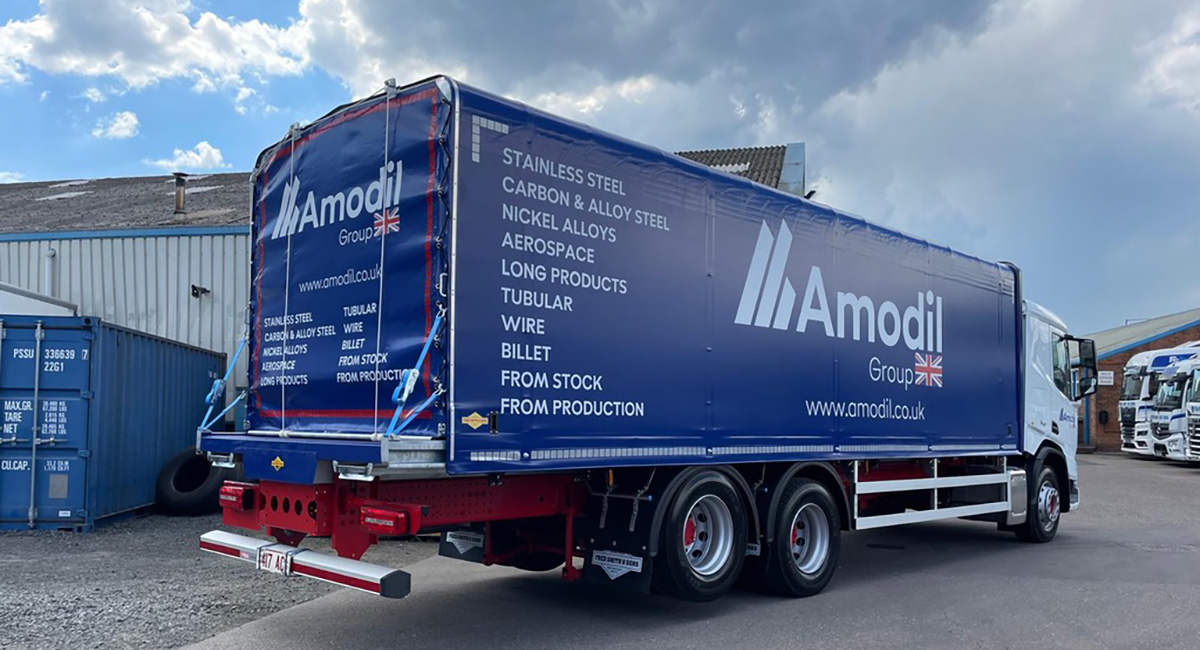

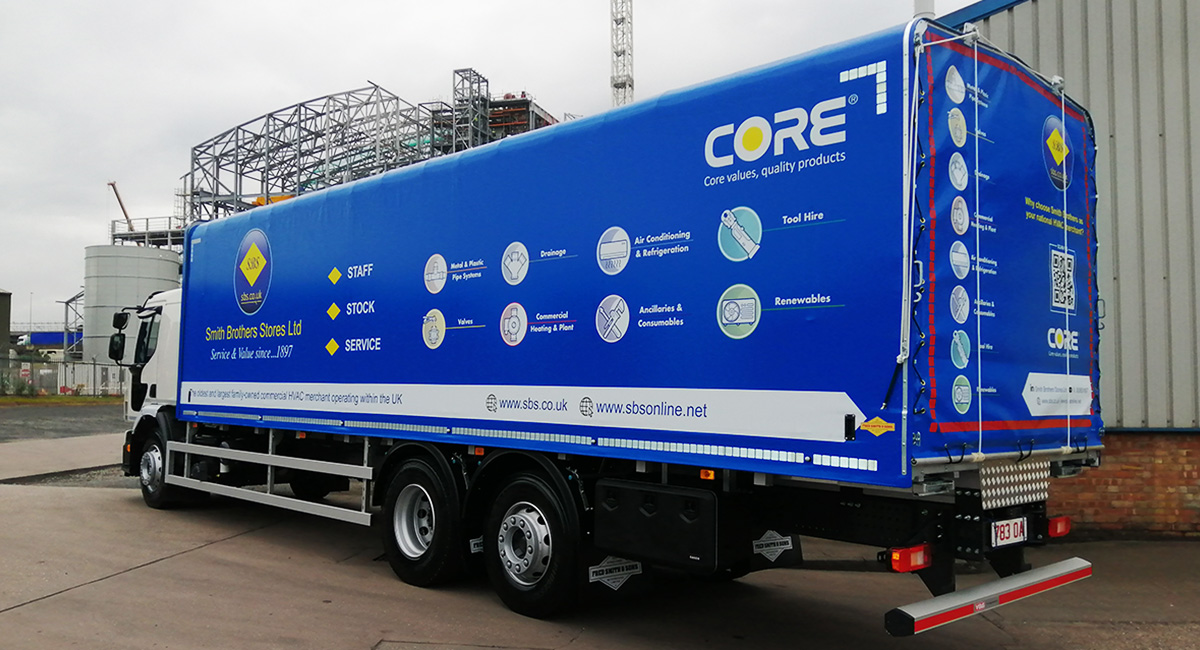

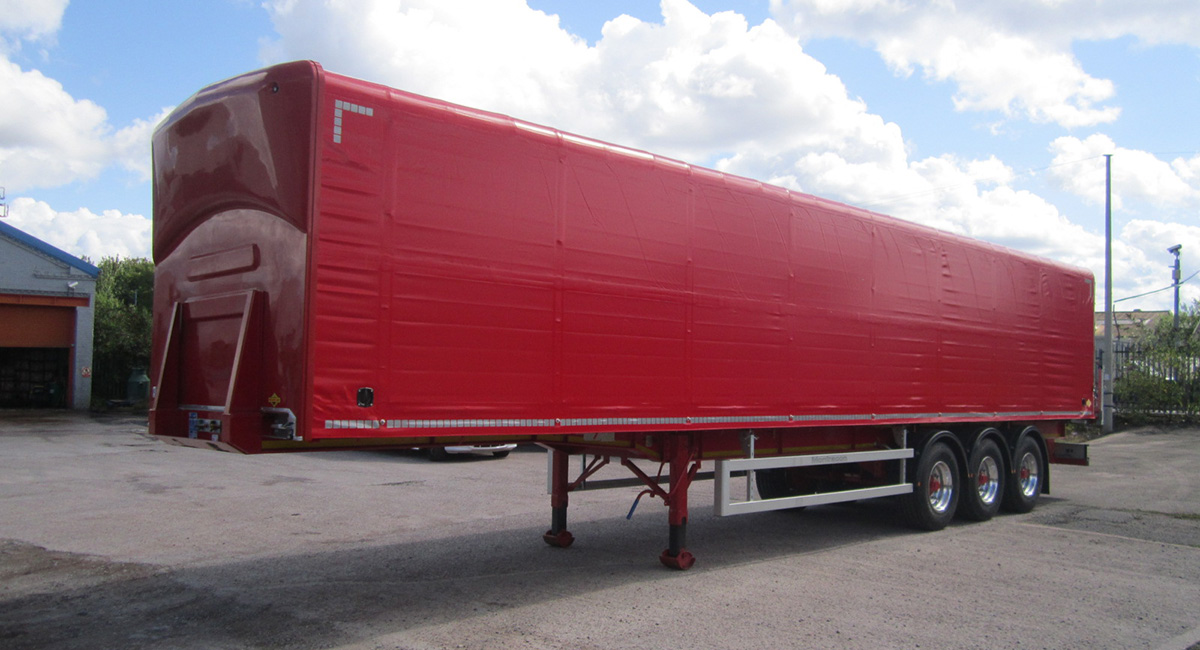

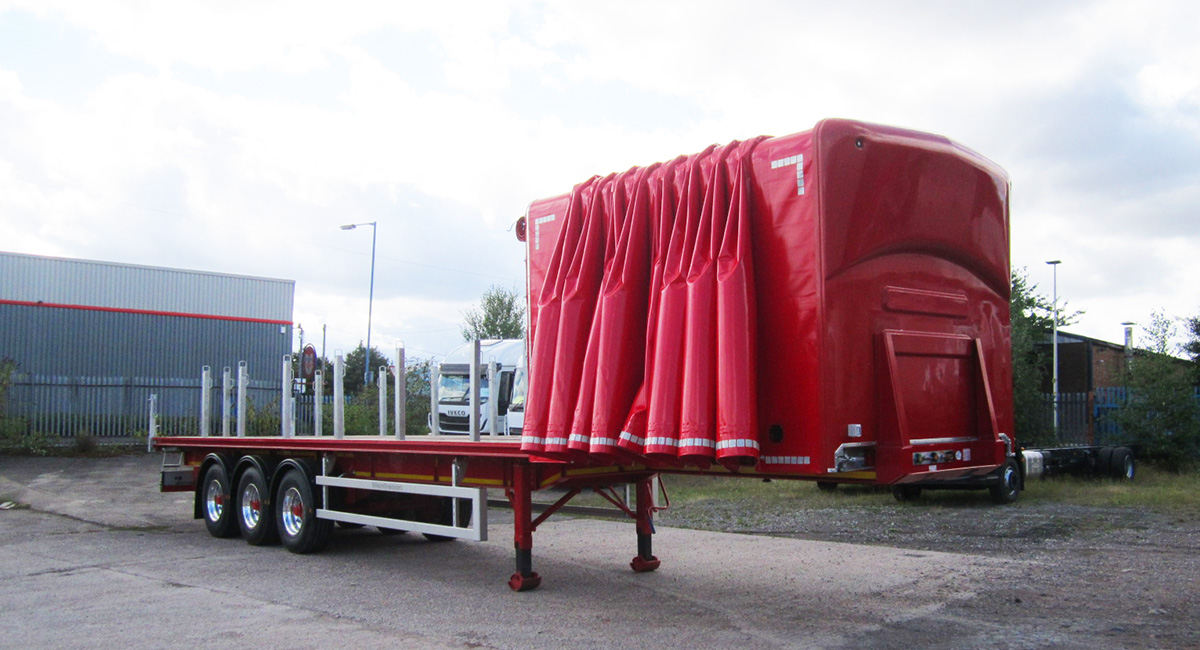

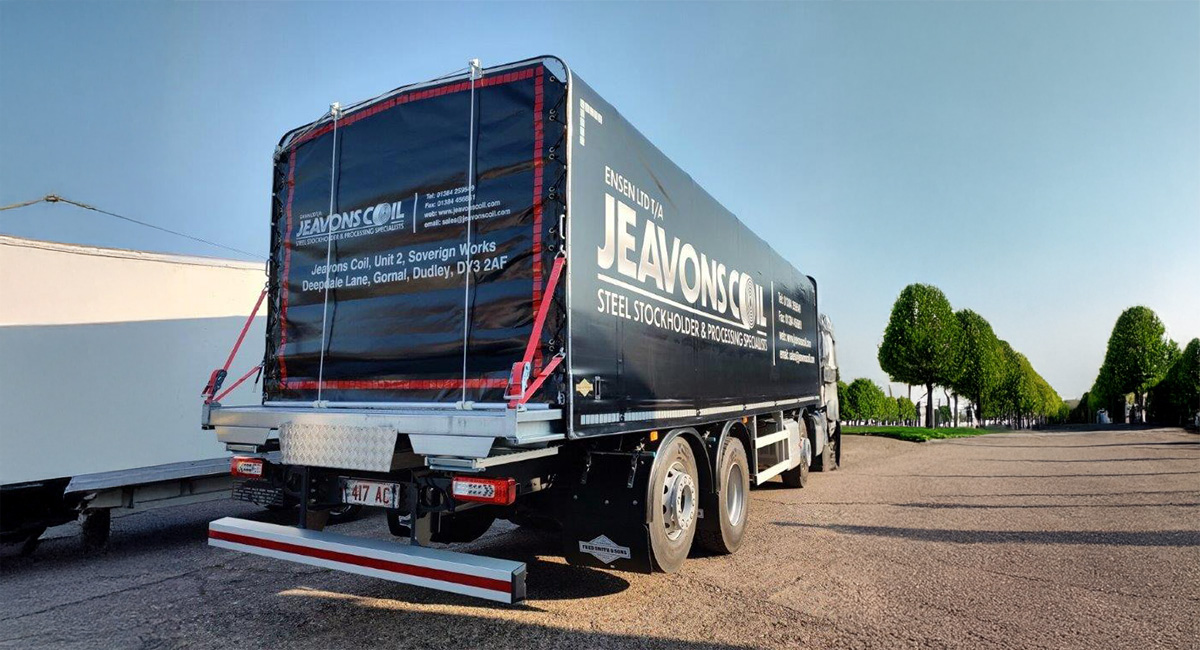

Structure-flex has a long involvement in sliding cover systems for the steel haulage industry and can fulfil your requirements whether this is for a complete body kit or a replacement cover or condensation sheet. We manufacture covers to suit both rigids and trailers, both new build and refurbishments. Our long experience in this product ensures that you receive a quality item in order to enhance your fleet.

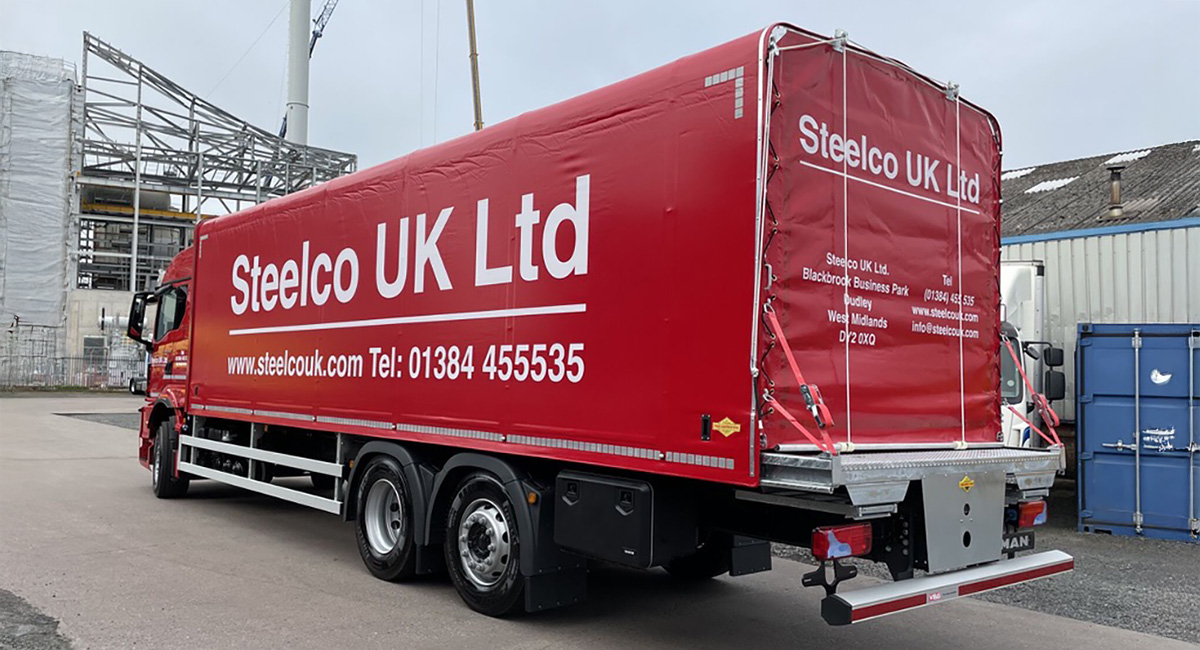

Slidaflex

  • Over 30 years of experience in manufacturing lorry curtains and covers
  • Choice of fabric colour from our extensive stock range
  • Additional livery options for rear door, cab decals and wraps
  • Curtain measuring service
  • Largest fully equipped, curtain printing and manufacturing facility in the UK
  • Signwriting and full digital print available

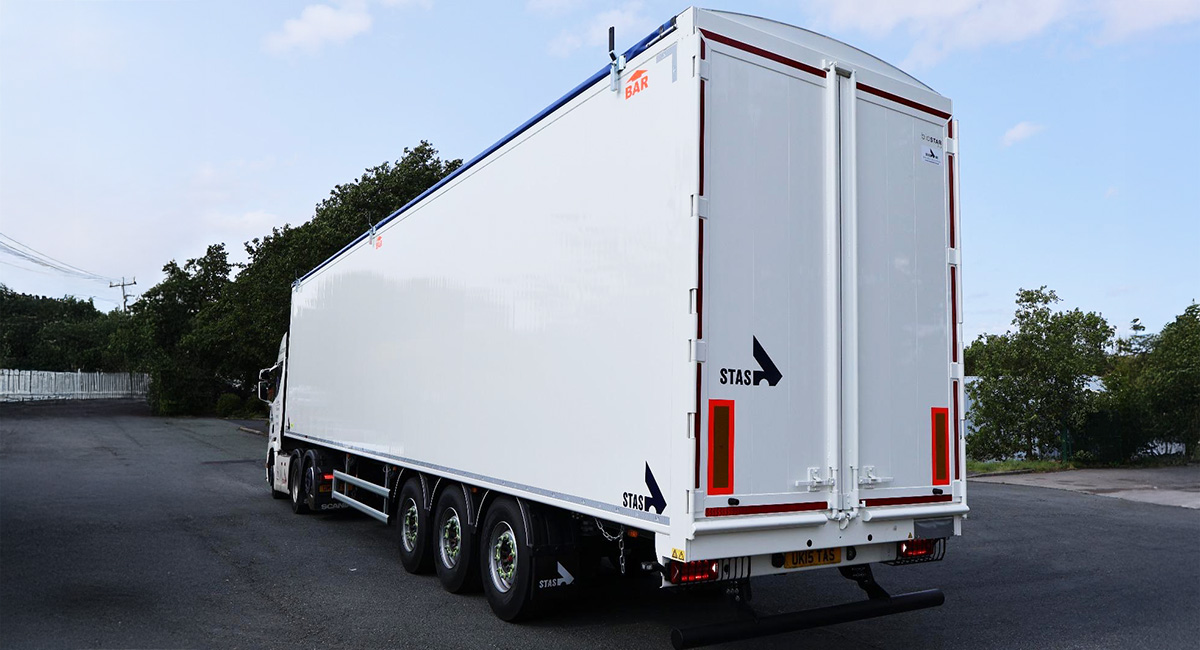

Structure-flex manufactures a range of rollover sheets to suit rigid bodies and trailers involved in a variety of uses from road transport to agricultural. Manufactured from 2 x 2 material and with reinforcing bands and patches to prevent excessive wear, we ensure that the cover will meet your requirements. We manufacture sheets to suit both manually operated and power driven systems together with rear flaps etc. and incorporating a variety of closures.

  • Over 30 years of experience in manufacturing lorry curtains and covers
  • Choice of fabric colour from our extensive stock range
  • Additional livery options for rear door, cab decals and wraps
  • Curtain measuring service
  • Largest fully equipped, curtain printing and manufacturing facility in the UK
  • Signwriting and full digital print available

Vehicle Wraps

From basic vinyl graphics to full vehicle wraps Structure Flex has it covered.

One of the most exciting things about vehicle wrapping is that just about anything is possible! We have the skills, experience and technology to bring your vehicle wrap design concept to life, enabling your vehicle to make a huge impact wherever it travels.

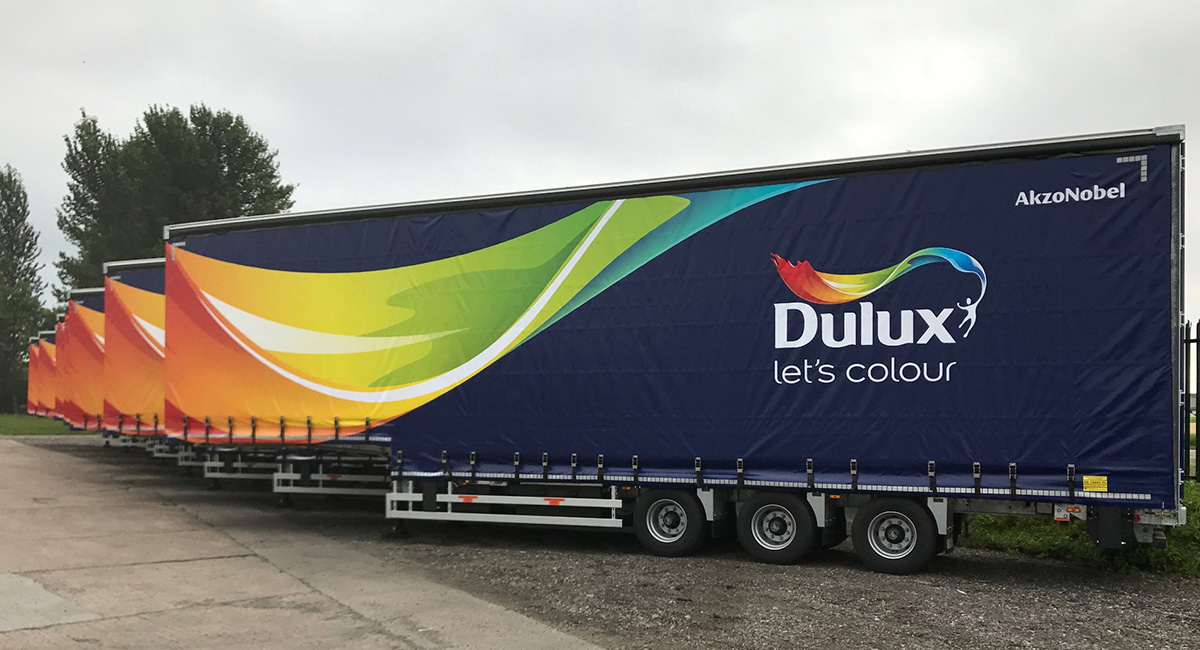

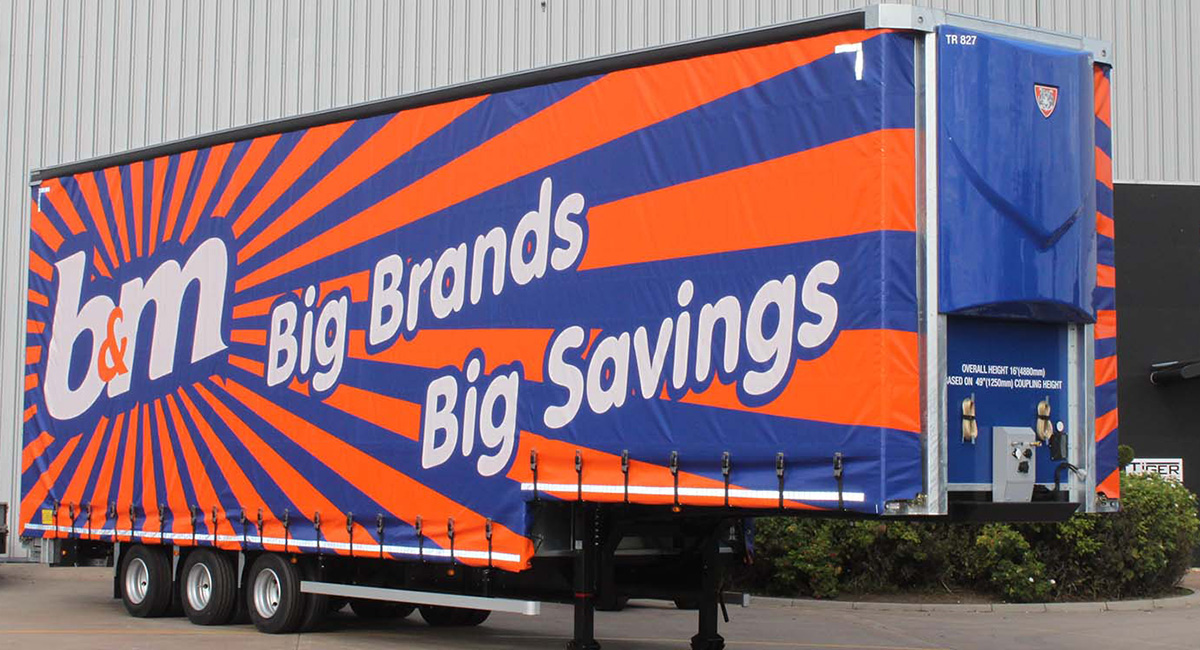

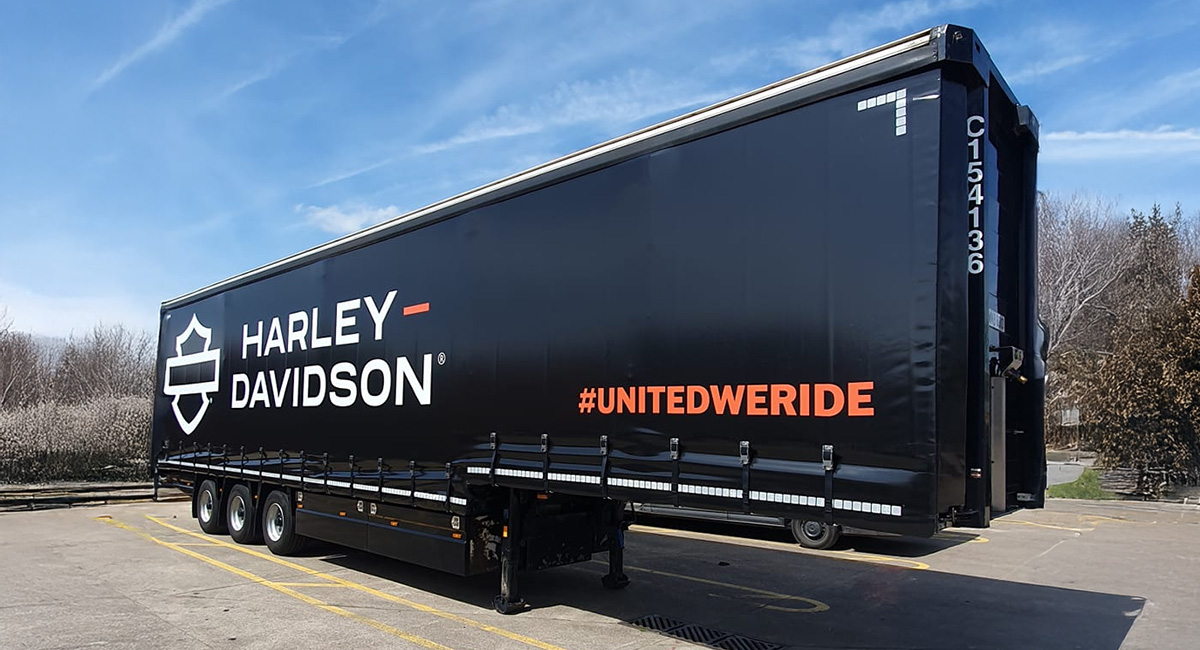

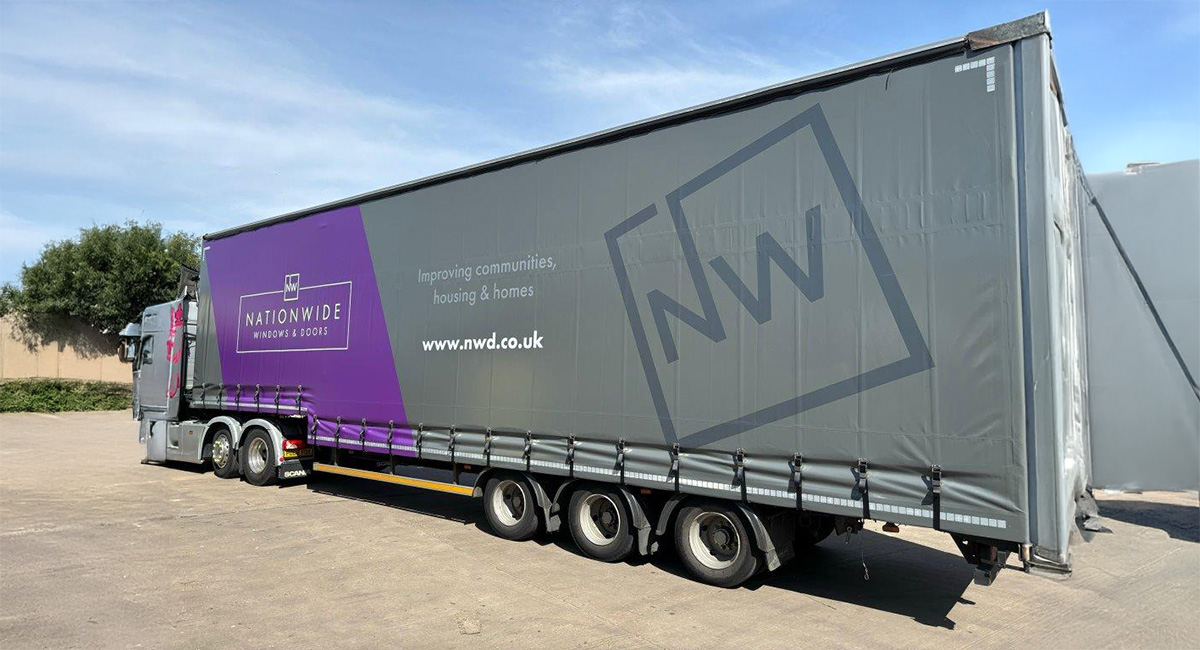

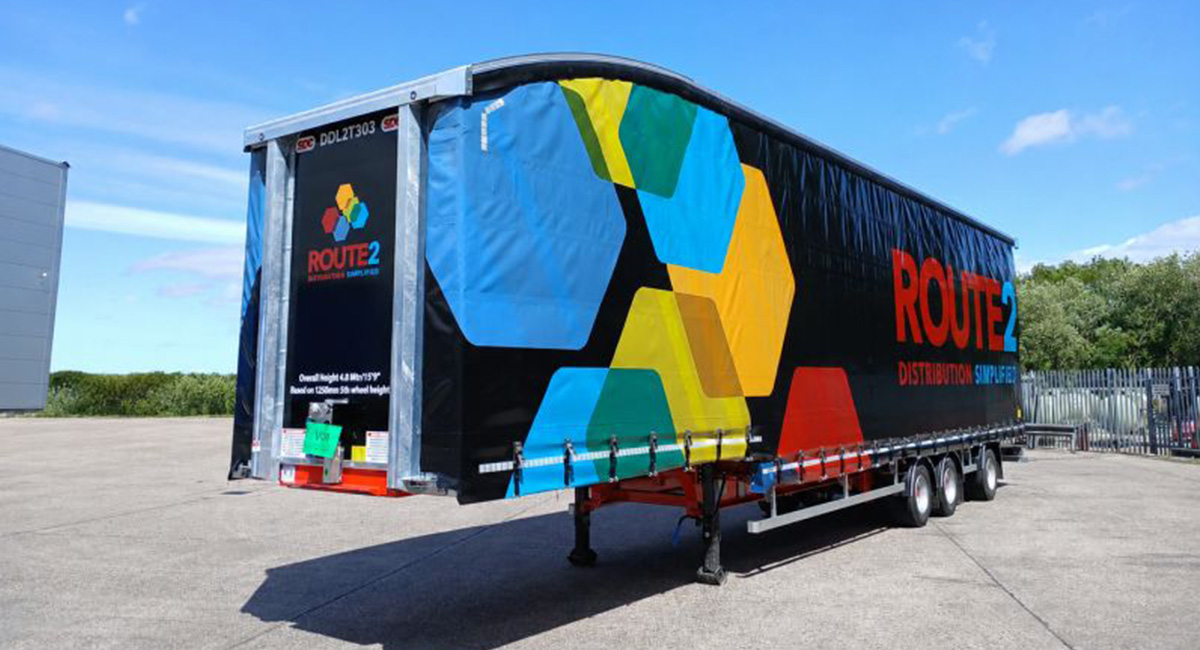

Structure-flex manufactures curtains to suit even the largest of vehicles and trailers. From step decks to double decks, curved Eco fronts to standard steps we ensure that your curtain meets your requirements. Additional wear bands are fitted as standard at both deck and pillar positions and the flap arrangement is manufactured with additional reinforcing at the step position to prevent excessive wear and tear.

  • Over 30 years of experience in manufacturing lorry curtains

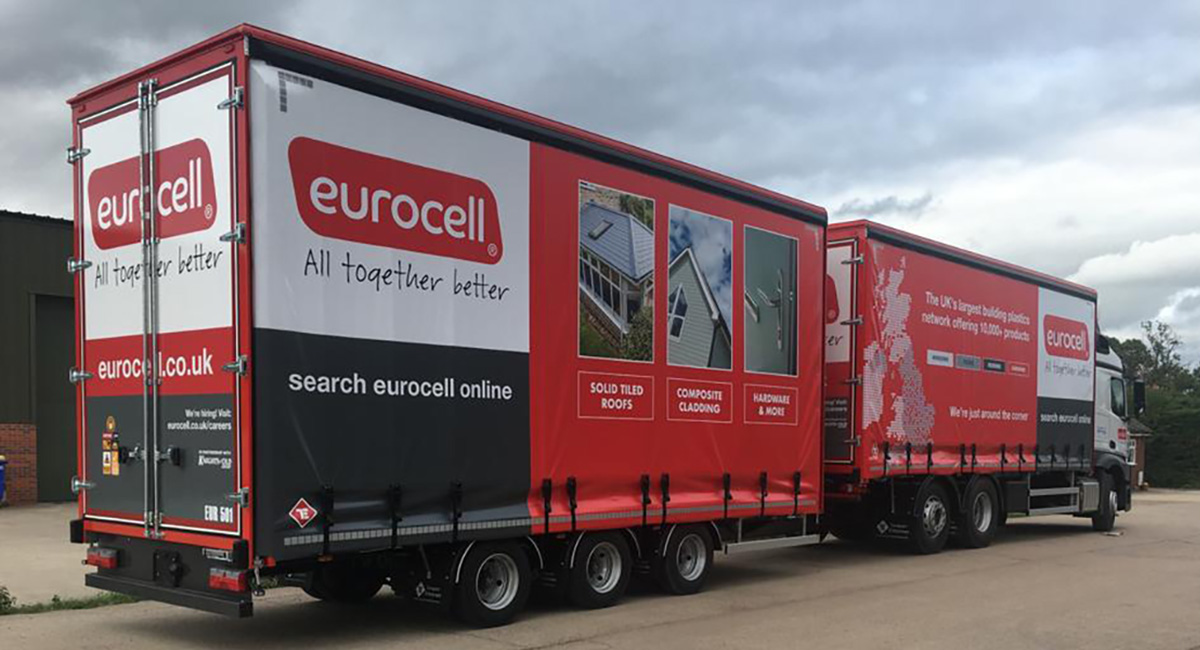

  • Available in both fixed strap and pocket strap style
  • Security and insulated options available
  • Choice of fabric colour from our extensive stock range
  • Additional livery options for rear door, cab decals and wraps
  • Curtain measuring service
  • Largest fully equipped, curtain printing and manufacturing facility in the UK
  • Signwriting and full digital print available


Specialist & Extra Options


We make curtains to fit all sizes of trailers and for all purposes. If you would like to know more than what is listed below please don't hesitate to call us on 01263 863100


By incorporating a separate composite layer of insulating aluminium air filled membrane, and further layer of 630gsm PVC to sandwich the insulation to the side curtain itself, we are able to assist with temperature control for non-frozen perishable goods, for both trailers and rigid vehicles. Structure-flex introduce the thermal insulation layer along the entire length of the curtain for optimum performance, whereas some only insert panels of insulation between the vertical buckle webbings. On a trailer, there could be 23 webbings each at 5cm wide, leaving nearly 10% each side of the curtain length uninsulated, reducing thermal performance.


  • High quality metallised insulation
  • Maximum reflection with a K value of 0.33 w/sqmk at 0 degrees C
  • Full trailer / vehicle length insulation coverage for optimum performance
  • Insulation is protected by inside layer layer of 630gsm PVC
Security and anti-vandal We are able to introduce a level of protection for side curtains, to combat low level knife slashing, by slowing down the offender, requiring more time consuming systematic 'snipping' during either opportunistic or targeted load theft, trailer entry or pure vandalism. Whilst it is accepted no anti-vandal option is perfect, side curtains incorporating a visible security system acting as a deterrent, may encourage the offender to pass on to an easier target, or stand a higher chance of being discovered because of the increase in time required to gain access.

Anti-vandal mesh Stainless steel close woven chain mail, is first attached to a sheet of 630gsm PVC coated polyester, and then finally welded to the inside face of the side curtain Available as standard in 1m or 2m heights, other sizes can be accommodated.

Sio-Steel A grid pattern of 100mm x 100mm, constructed from 4mm wide flat stainless steel strips is introduced to the inside curtain face, with a third covering layer of 630gsm PVC coated polyester covering the grid. Protection heights are offered at either 900mm, 1200mm or 1800mm.

Dynatex Heavy duty inner skin from PVC coated wire mesh panel. Inner skin attached to the inside face of the curtain by PVC welding. Standard Dynatex height is 1250mm; other heights may be available upon request.

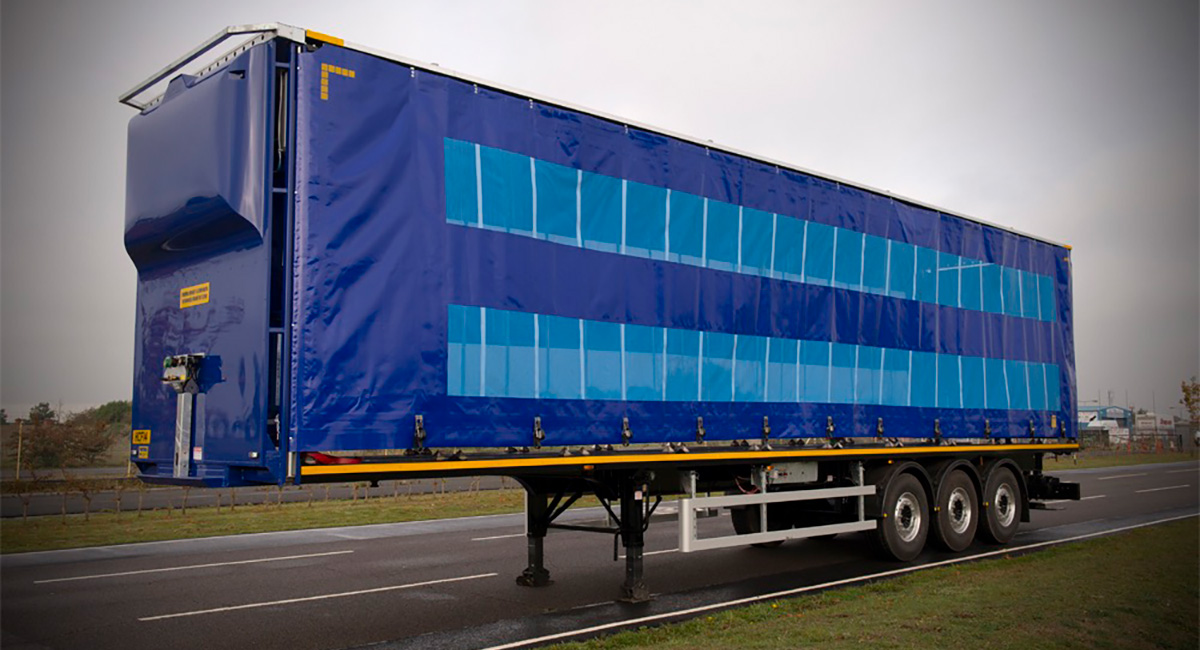

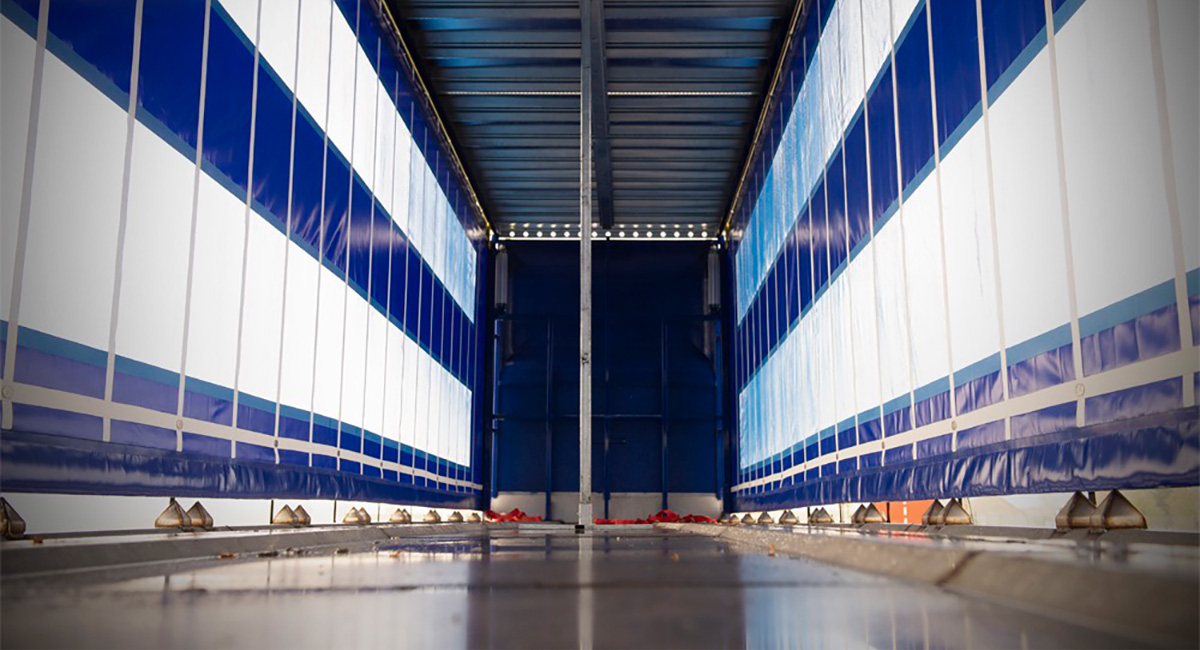

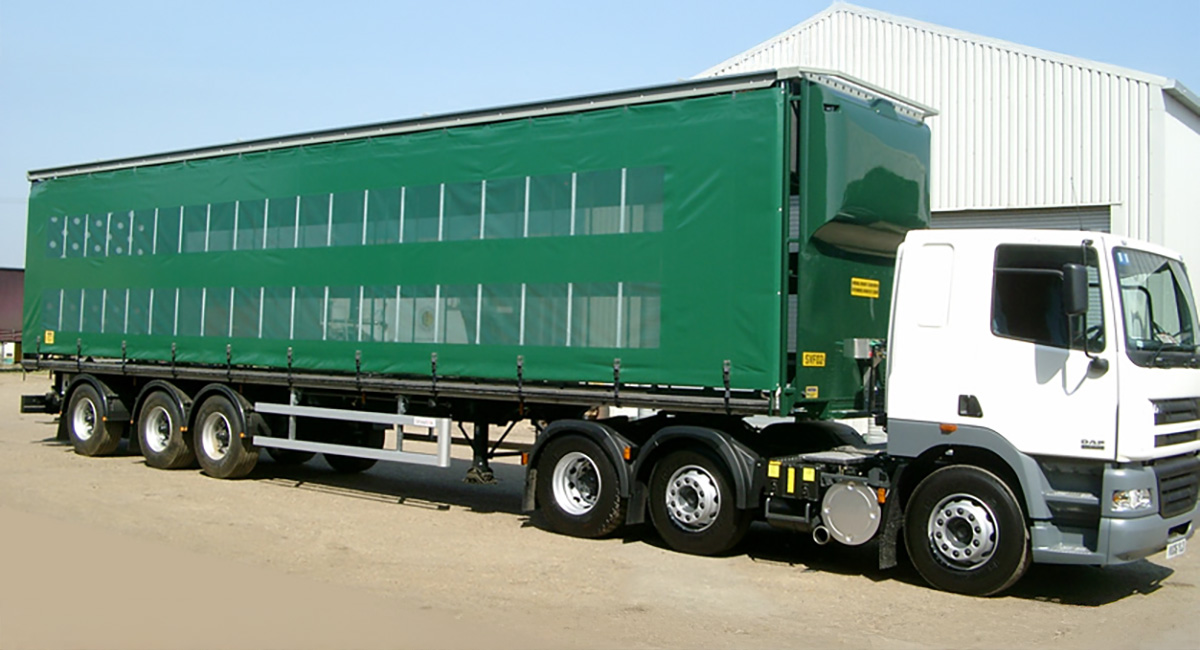

Having worked for over 20 years with market leading specialist poultry trailer manufacturer Panama Trailers, we offer poultry side curtains, which incorporate open weave PVC mesh panels running the entire curtain length, as well as an overall curtain drop designed to leave a gap above the floor. These features enable a high level of airflow, so poultry do not suffer temperature discomfort during transportation.

  • Over 30 years of experience in manufacturing lorry curtains
  • Proven poultry construction design, for strength and durability.
  • Choice of fabric colour from our extensive stock range
  • Variety of air flow mesh colours and strengths available
  • Additional livery options for rear door, cab decals and wraps
  • Curtain measuring service
  • Largest fully equipped, curtain printing and manufacturing facility in the UK
  • Signwriting and full digital print available

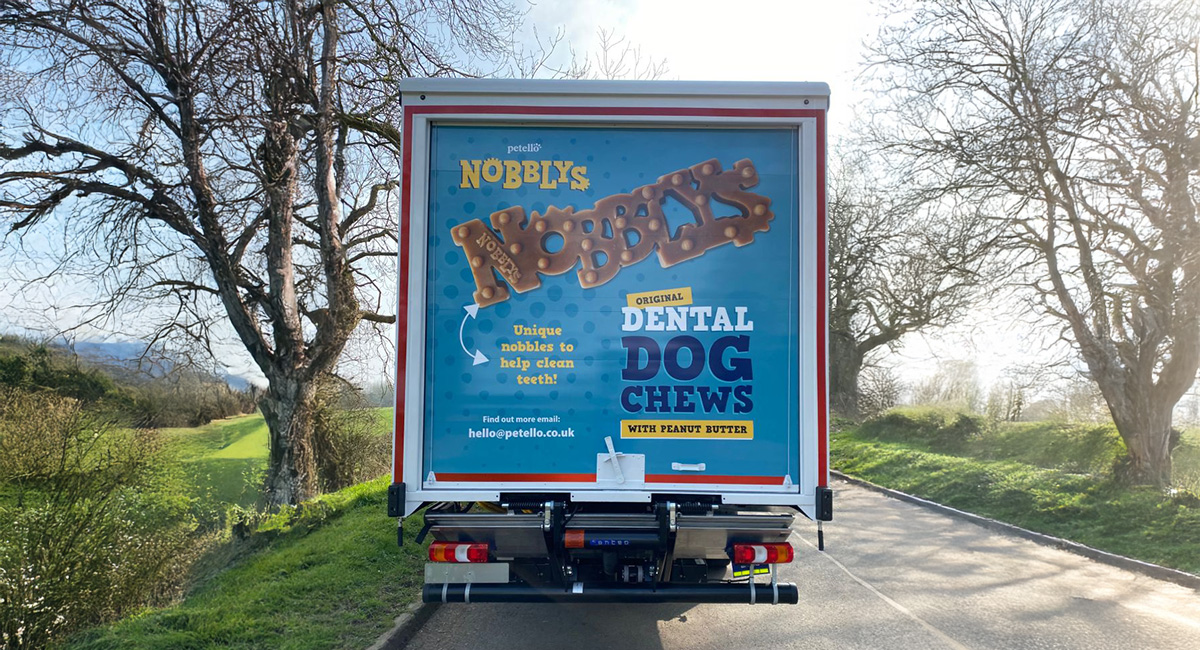

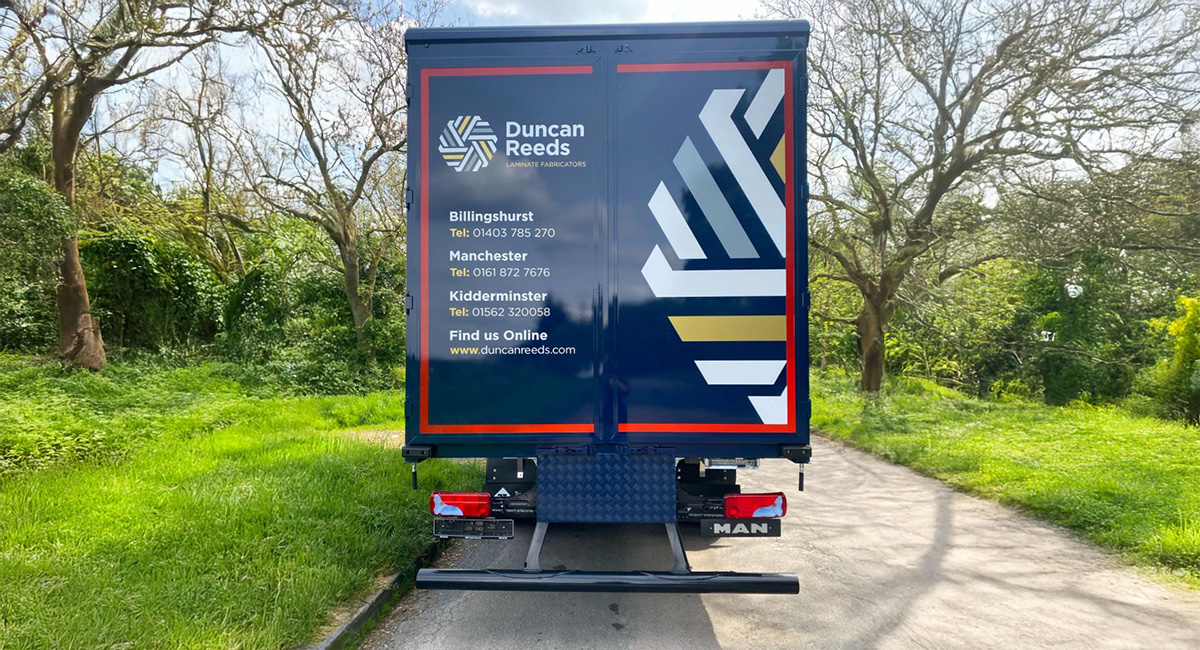

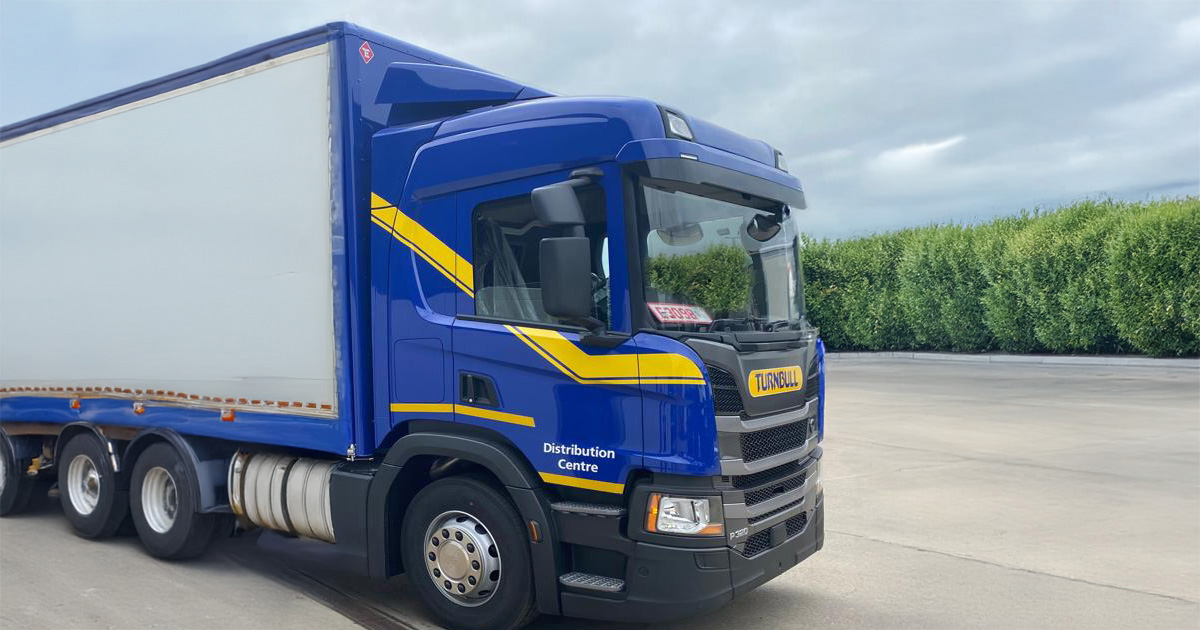

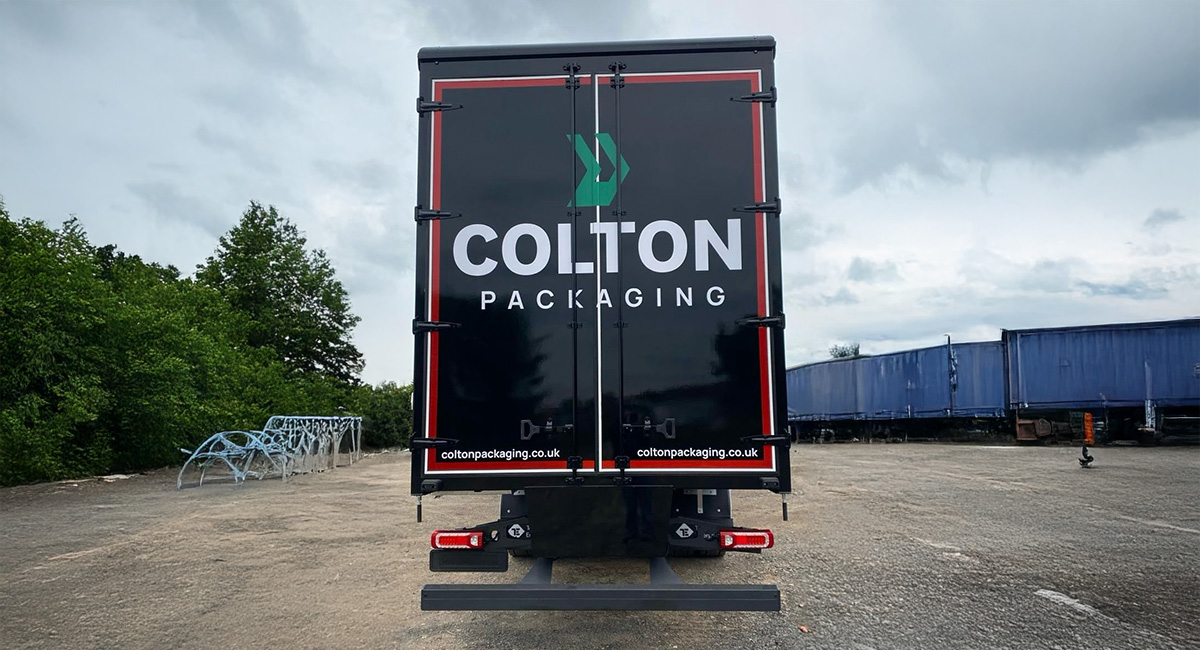

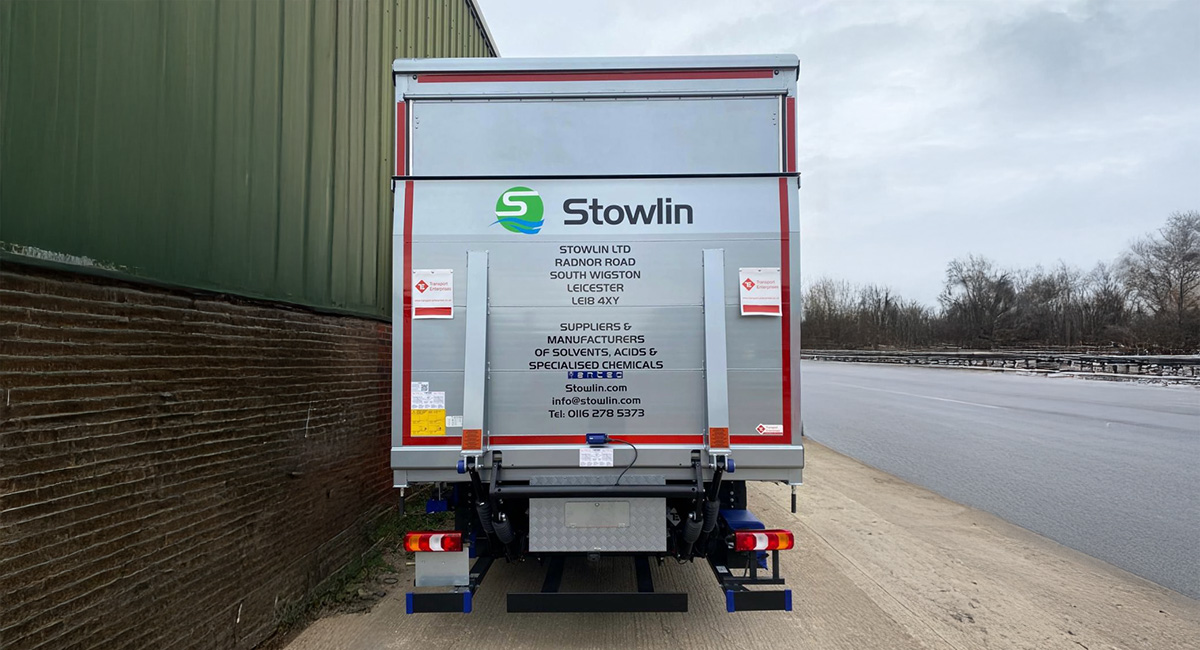

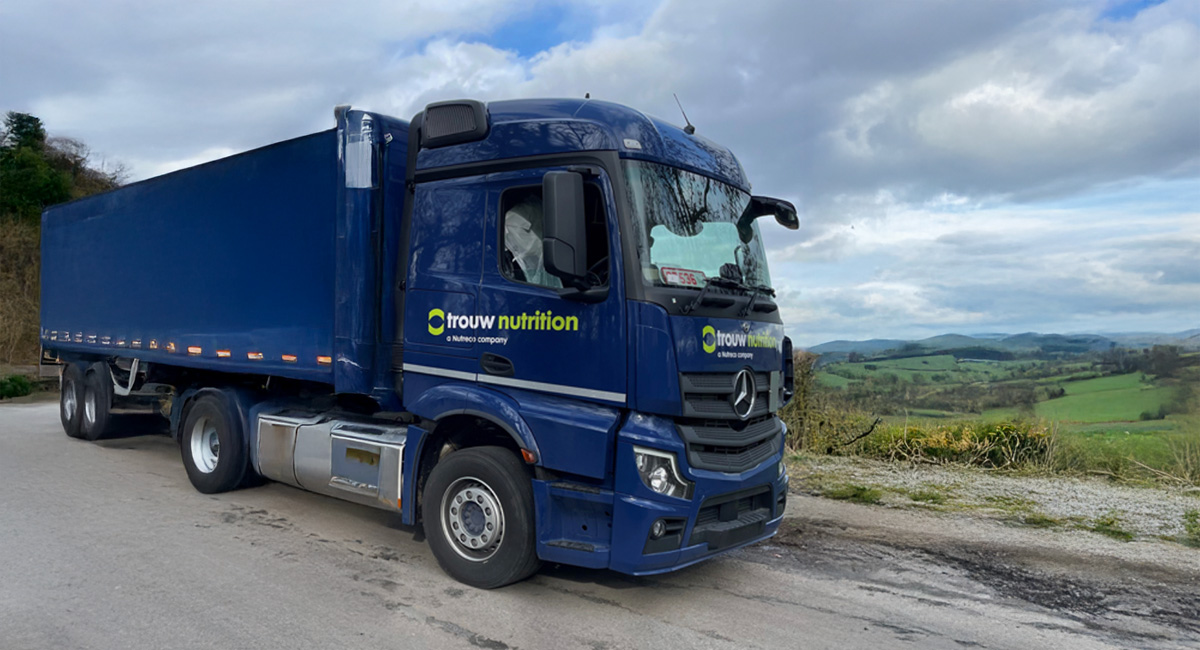

In addition, or separately to our side curtains we can also provide cab wraps and rear-door decals or wraps. These are perfect for tying your livery design together!



VIDEOS

Please view the following videos to understand a bit more about the different options we offer.




Fitting & Spares


We offer a nationwide fitting service via our partners, We supply spares for buckles, rollers, bobbins, weighted rings, Bottom straps please don't hesitate to call us on 01263 863100
